P0341-Camshaft Position Timing Over-Advanced: Notes

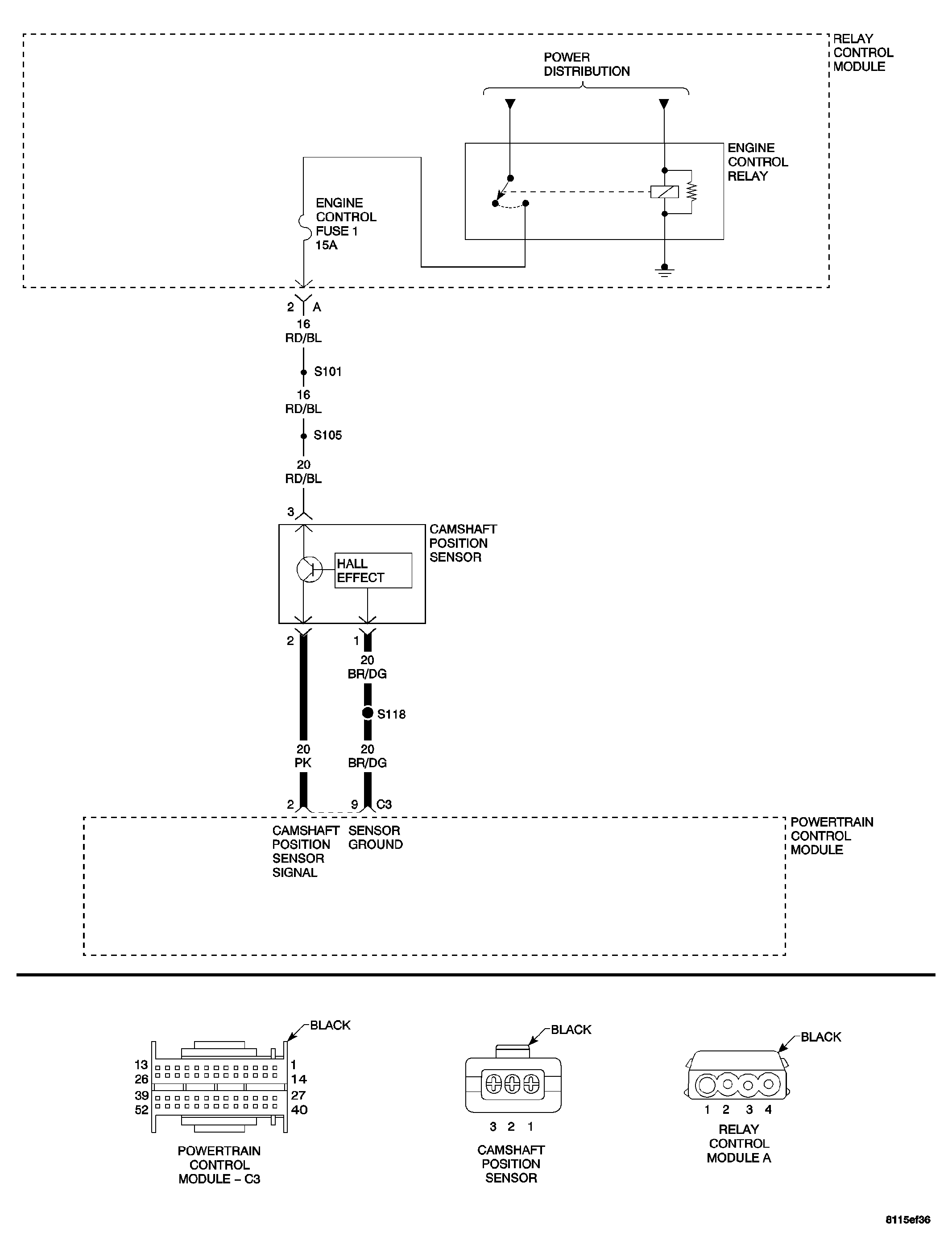

Fig 1: Camshaft Position Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : Engine cranking and engine running
2. Set Condition  : If the Camshaft Position Signal (angular variation) is more than 15° of the Crankshaft Position Signal, this DTC is set.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
