P0441-EVAP Purge Valve: Notes

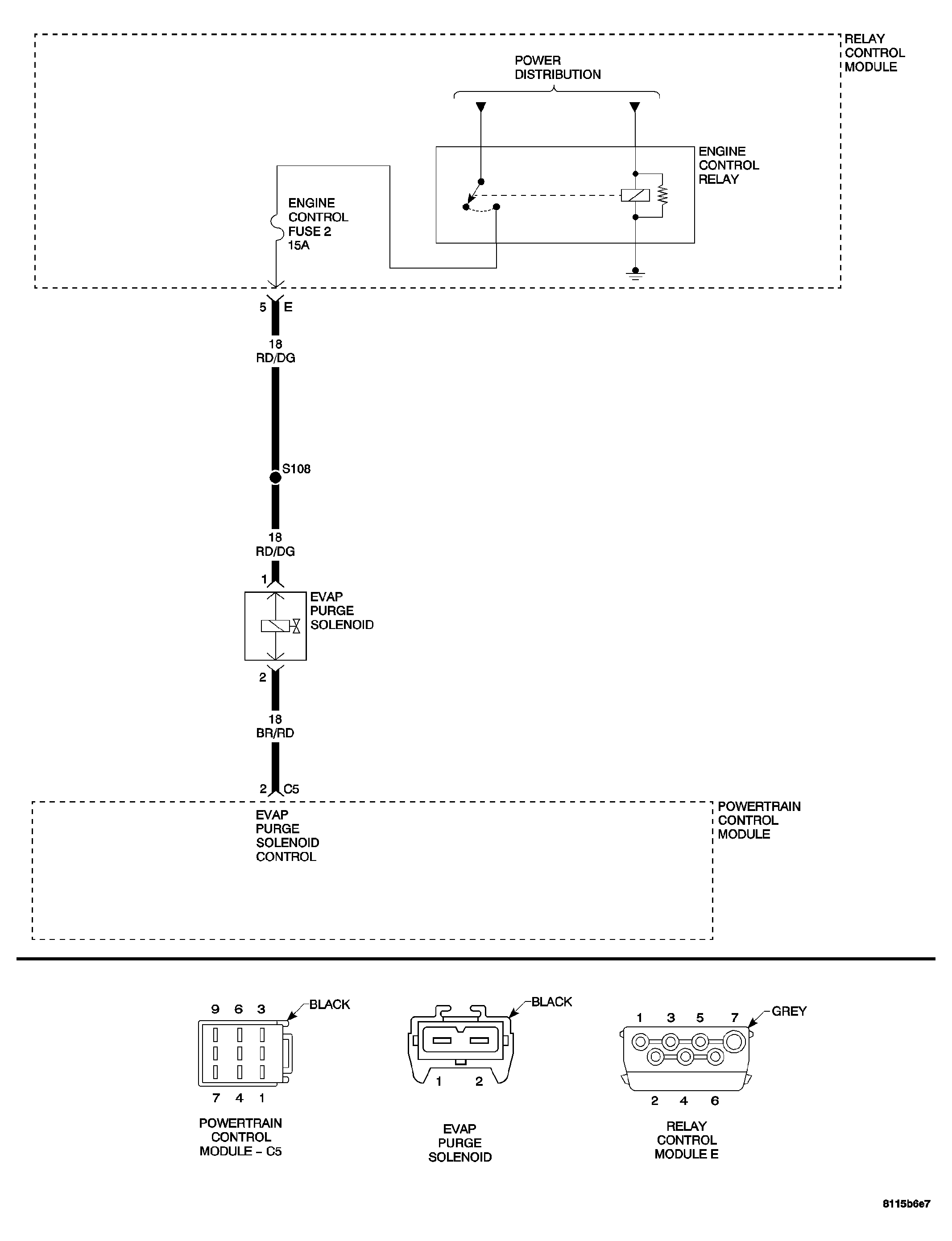

Fig 1: EVAP Purge Solenoid Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : Continuously with the ignition on.
2. Set Condition  : An improper voltage level has been detected on the EVAP Purge Solenoid Control circuit.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
