P0446-EVAP Purge Solenoid Stuck Open: Notes

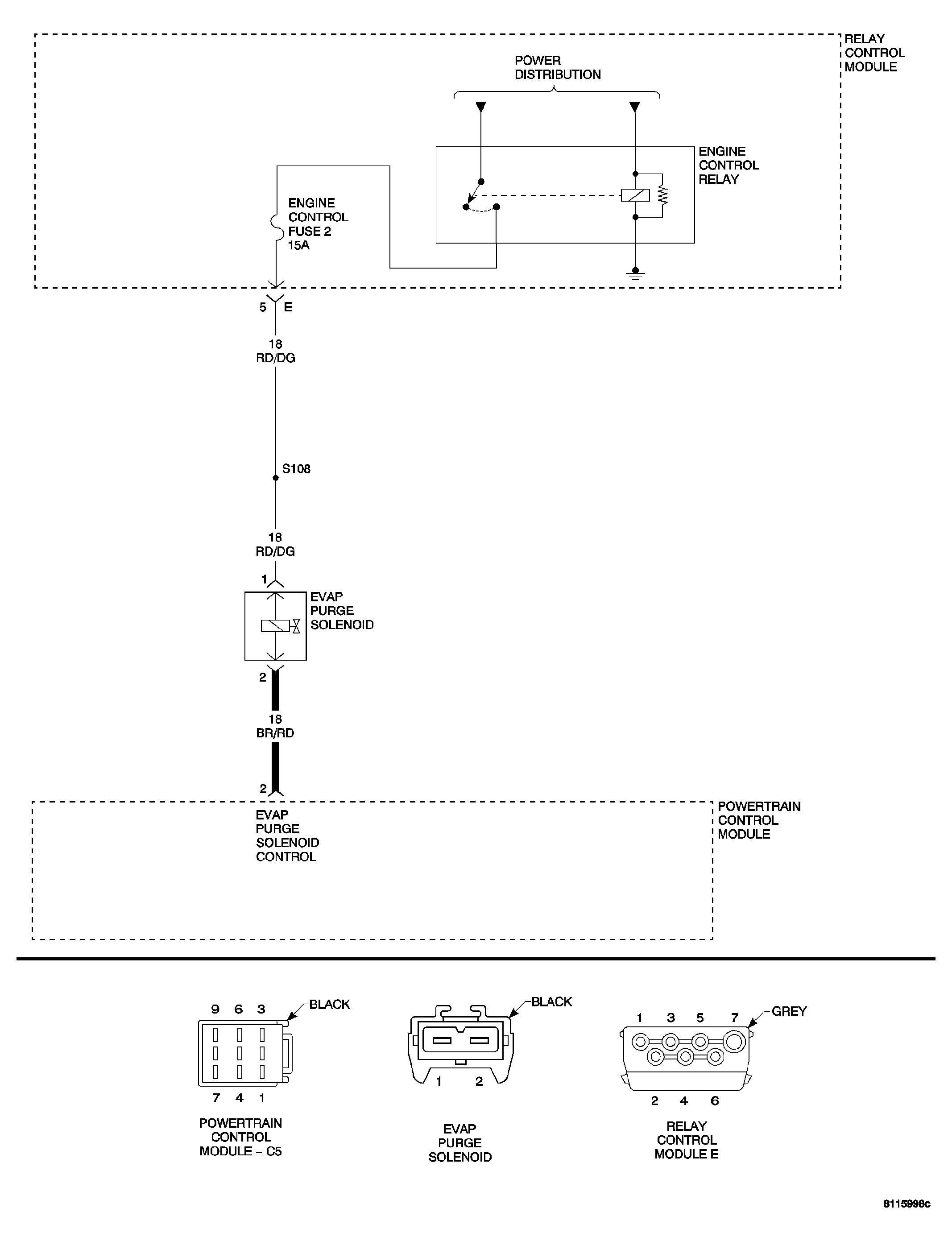

Fig 1: EVAP Purge Solenoid Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : Cold start test. Engine Running.
2. Set Condition  : The Powertrain Control Module (PCM) activates the EVAP Purge Solenoid gradually and increases to maximum flow. The PCM monitors the Fuel Tank Pressure Sensor and if the value falls below -40 hPa (0.58 psi) too soon, this DTC is set.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
