P0460-Fuel Level Sensor Circuit: Notes

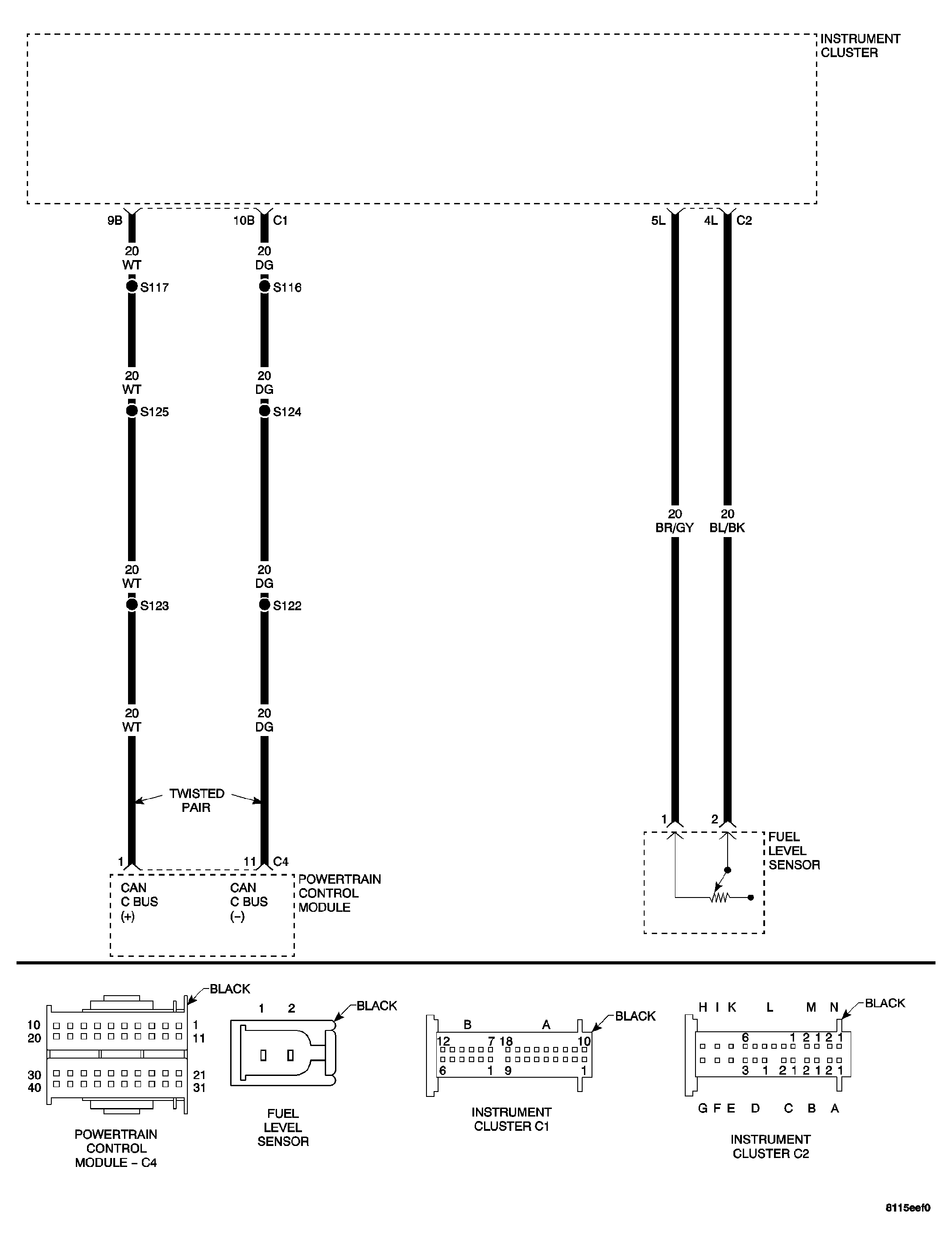

Fig 1: Fuel Level Sensor Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : The Powertrain Control Module (PCM) monitors the fuel level at ignition on.
2. Set Condition  : If the PCM does not see a change in the fuel level over a set amount of miles, the test will fail. Two Trip Fault.

For a complete Instrument Cluster Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
