P0563-Battery System High: Notes

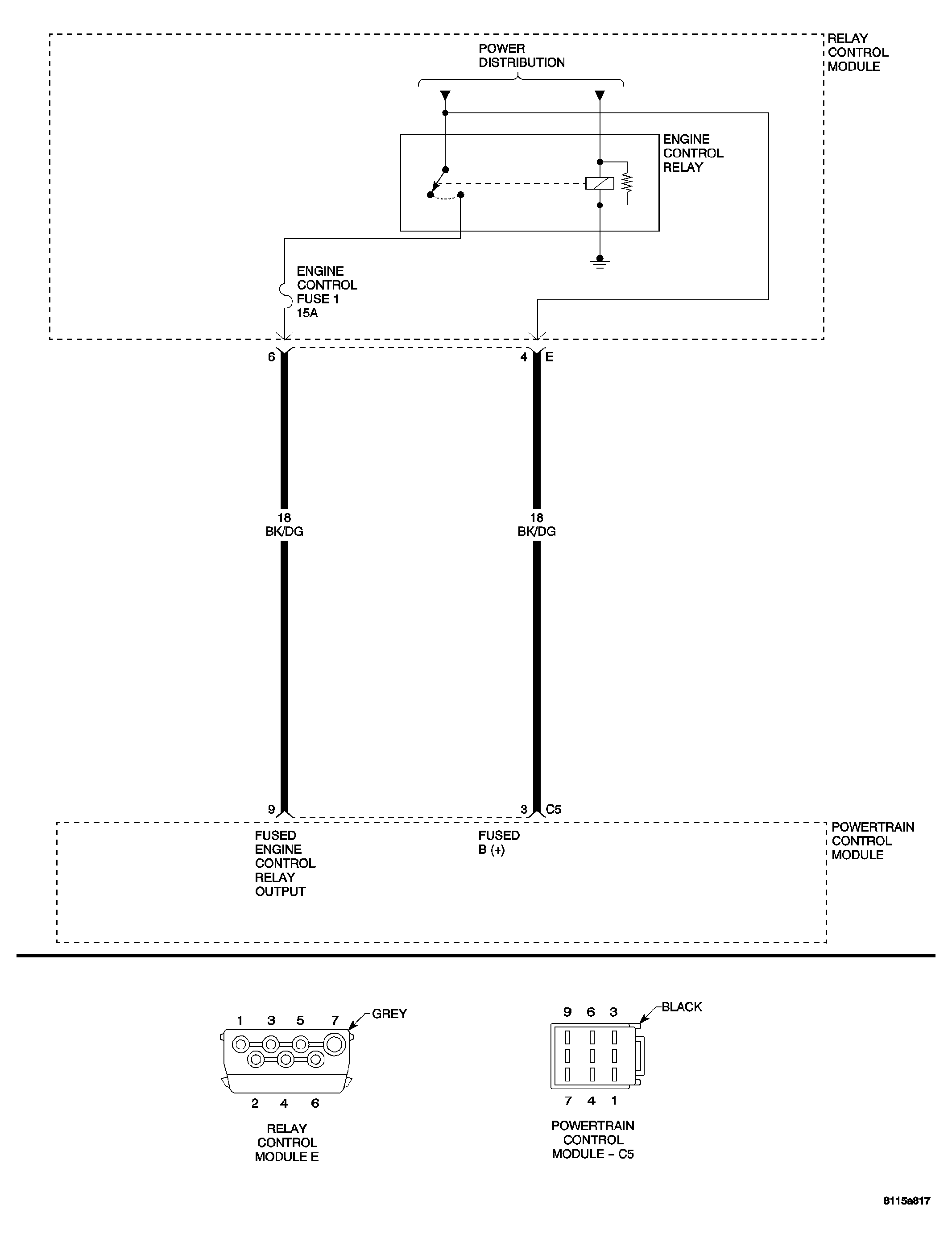

Fig 1: Powertrain Control Module Power Circuits Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : 180 seconds after the engine is started.
2. Set Condition  : The voltage supply at the Powertrain Control Module (PCM) is greater than 16.5 volts for at least 5 seconds.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
