P0575-Speed Control Switch Input Circuit: Notes

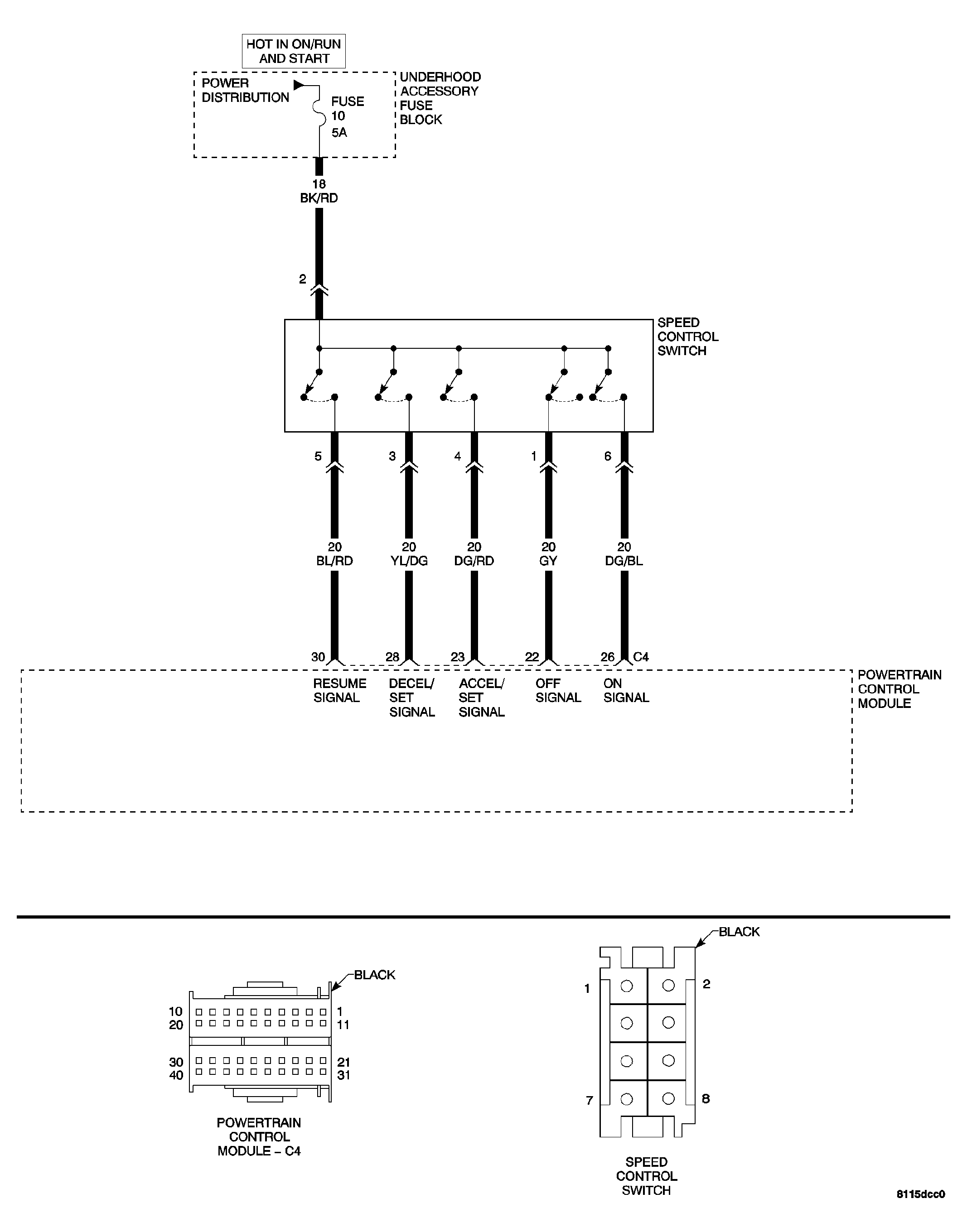

Fig 1: Speed Control Switch Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : With the ignition on.
2. Set Condition  : Anytime the Powertrain Control Module (PCM) doesn't sense the proper voltage on the Speed Control Switch Off Signal circuit.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
