P0600-No Can Message From Cab Module: Notes
- When Monitored : With the ignition on.
- Set Condition : This DTC is set when a CAN ID is not received in the required time from the Controller Antilock Brake (CAB).
| Possible Causes |
|---|
| CAN C BUS (+)/(-) CIRCUIT OPEN |
| CAN C BUS (+)/(-) CIRCUIT SHORT TO GROUND |
| CAN C BUS (+)/(-) LOW CIRCUIT SHORT TO VOLTAGE |
| SENTRY KEY REMOTE ENTRY MODULE |
| CONTROLLER ANTILOCK BRAKE |
| POWERTRAIN CONTROL MODULE |

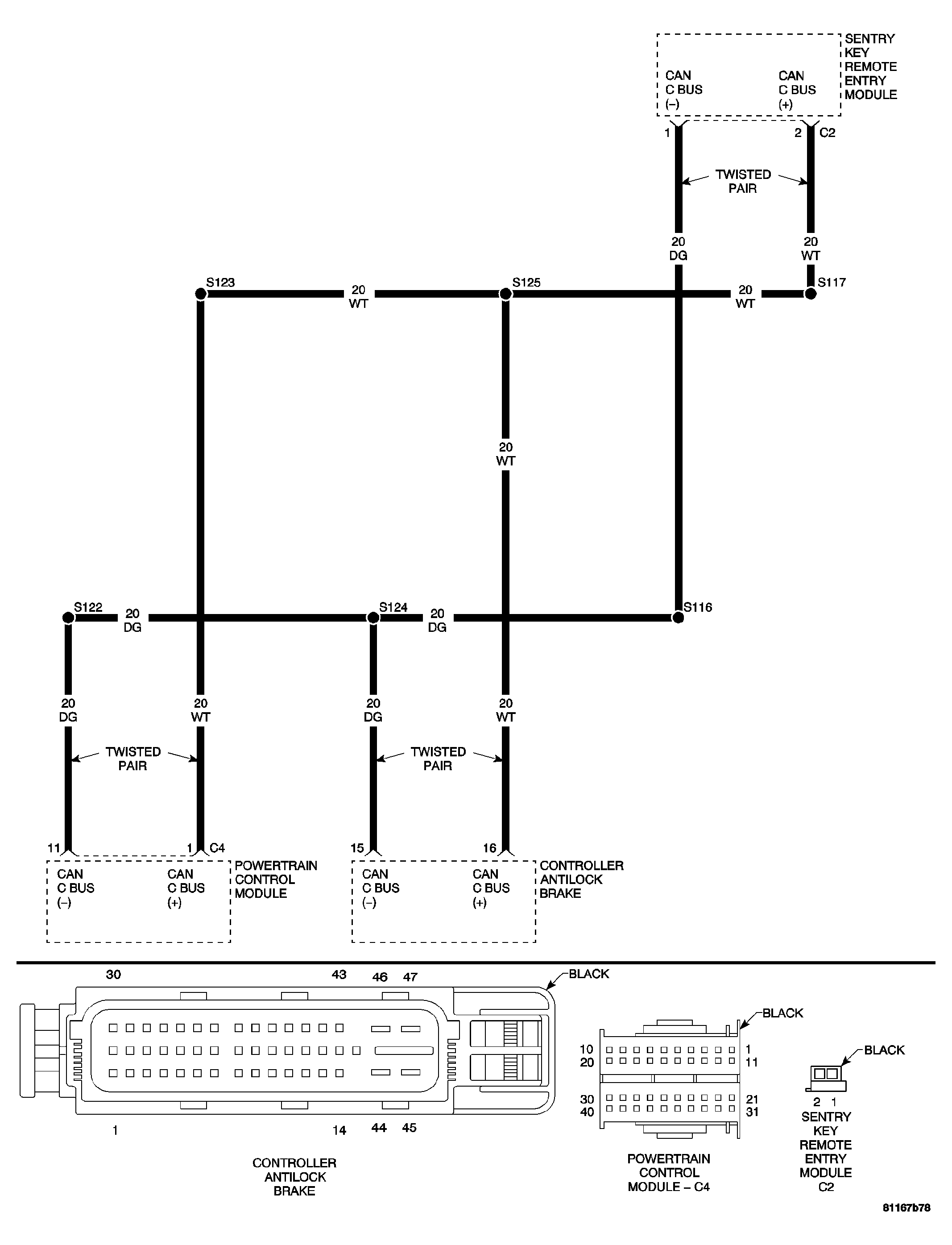

For a complete Electronic Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
