P0606-Internal Pcm Processor: Notes

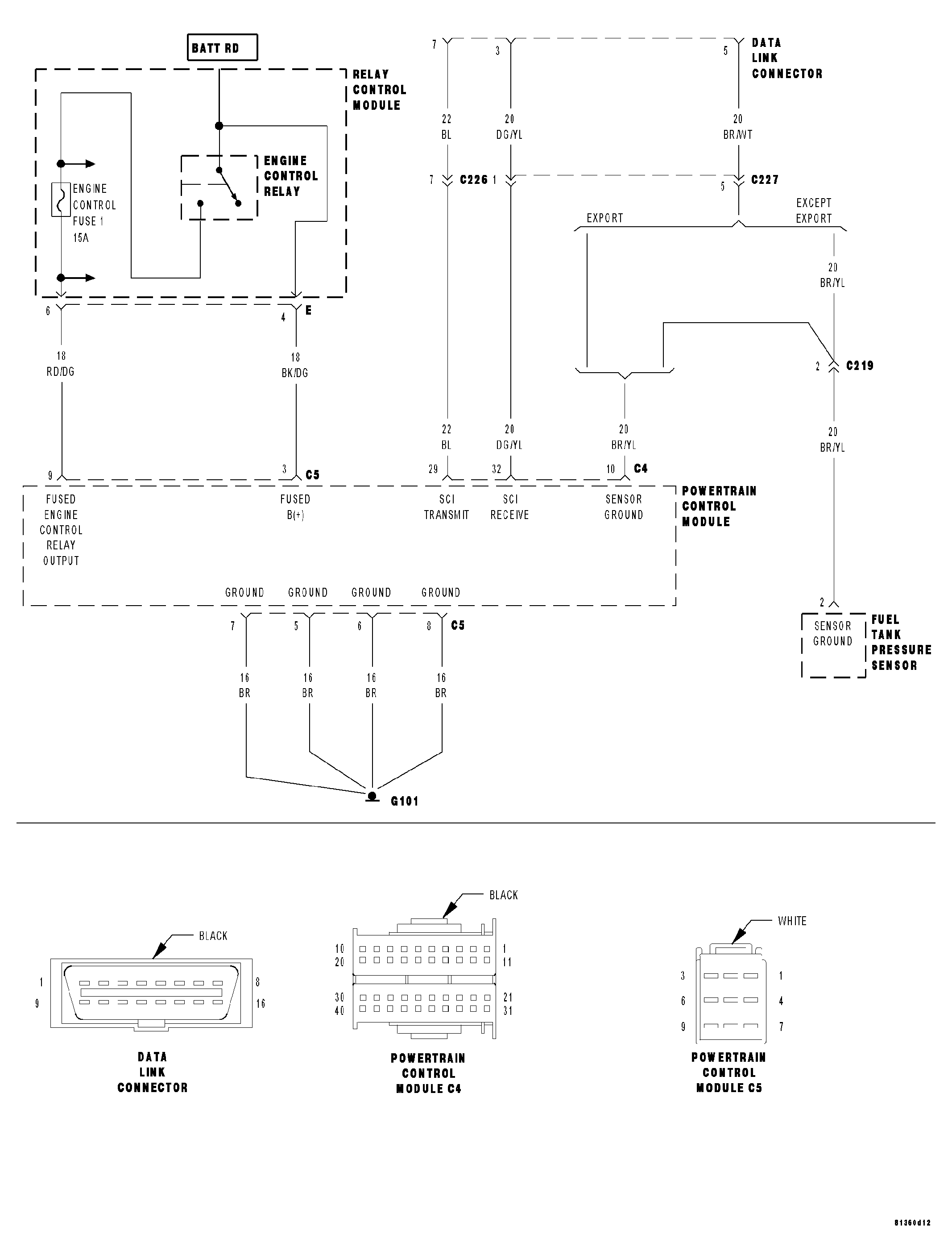

Fig 1: PCM Power, Ground & SCI Communication Circuits Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : Continuous.
2. Set Condition  : If the Powertrain Control Module (PCM) detects an internal fault, this DTC is set.

For a complete Powertrain Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
