P0705-SLA Control System (Mil Request): Notes

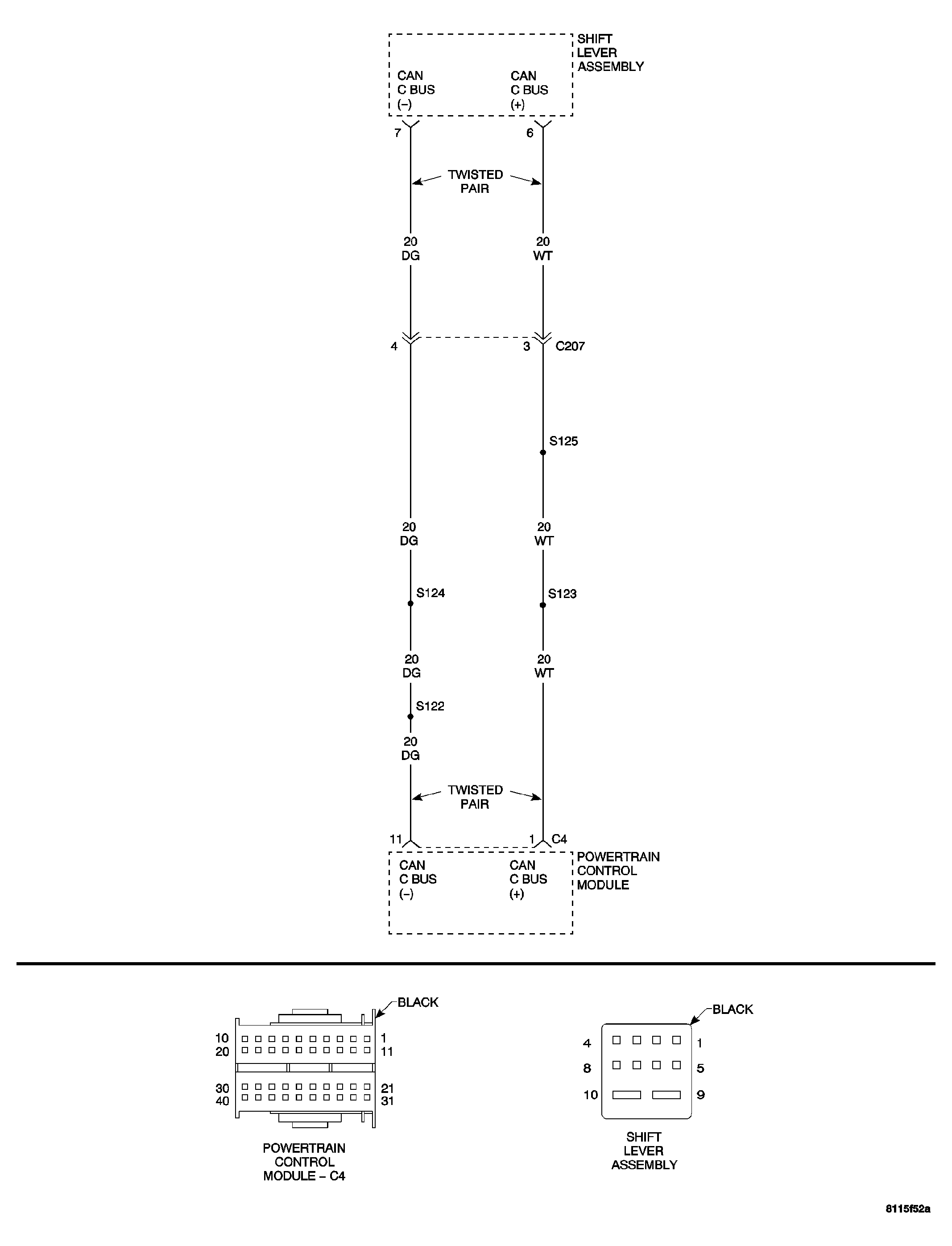

Fig 1: Shift Lever Assembly Communication Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete Transmission Control Module Circuit Diagram, refer to SCHEMATICS AND DIAGRAMS .
