P1386-Knock Sensor System Failure: Notes

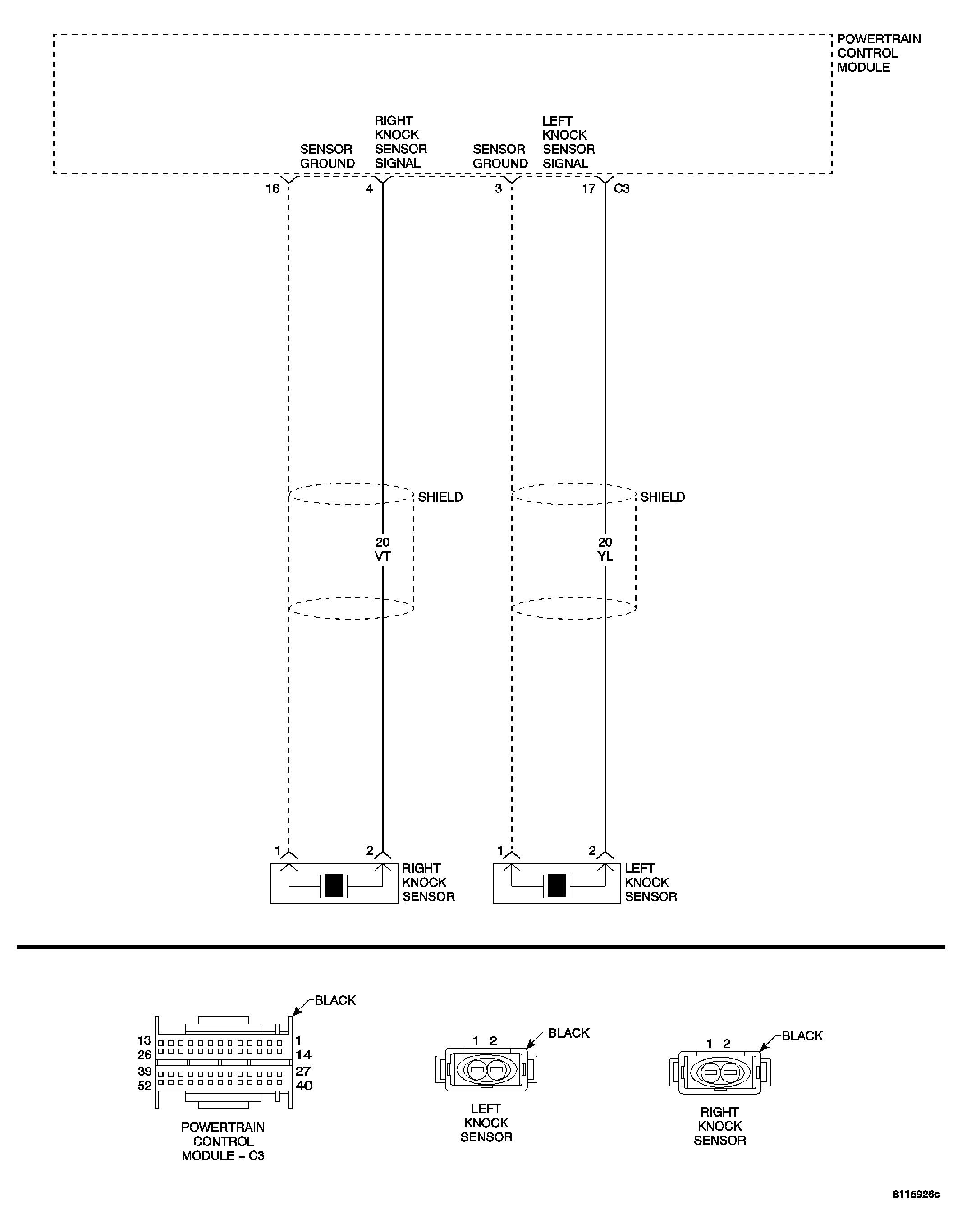

Fig 1: Knock Sensor System Circuit Schematic

Courtesy of CHRYSLER LLC

1. When Monitored  : After the anti-knock control is shut off and the engine is at operating temperature.
2. Set Condition  : The anti-knock control test has failed Ten consecutive times in a row.

For a complete Powertrain Control Module Circuit Diagram,
