Passive Restraints
The passive restraints include:

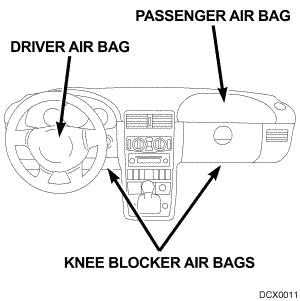

Dual Front Airbags - Multistage driver, front passenger, driver and passenger knee blocker airbags are available for this model. This airbag system is a passive, inflatable, Supplemental Restraint System (SRS) and vehicles with this equipment can be readily identified by the "SRS - AIRBAG" logo molded into the driver airbag trim cover in the center of the steering wheel and also into the passenger airbag door on the instrument panel above the glove box. Vehicles with the airbag system can also be identified by the airbag indicator, which will illuminate in the instrument cluster for about seven seconds as a bulb test each time the ignition switch is turned to the ON position. A pyrotechnic-type seat belt tensioner is integral to the driver and passenger front seat belt retractor of all models equipped with dual front airbags.
Occupant Classification System - These vehicles also include an Occupant Classification System (OCS) with components that are located on or in the passenger front seat cushion. These components include an Occupant Classification Module (OCM) and a seat weight bladder and pressure sensor assembly. In addition, this system includes a belt tension sensor integral to the lower anchor of the passenger side front seat belt.
Seat Weight Bladder and Pressure Sensor Assembly - Vehicles equipped with the Occupant Classification System (OCS) include a seat weight bladder that is sandwiched between an insulator pad on the top of the passenger side front seat pan and the seat cushion foam padding. A short hose connects the bladder to a pressure sensor which is secured to the Occupant Classification Module (OCM) mounting bracket on the underside of the passenger side front seat cushion frame. The seat weight bladder and pressure sensor can only be replaced as an assembly. This service kit includes the module. There are tamper resistant connectors on the service kit to insure correct serviceability. These components are not replaceable separately from the seat cushion foam. When replaced as an assembly, the complete service kit (seat cushion, bladder/sensor, OCM, and new wiring harness) MUST be used. Refer to REMOVAL .

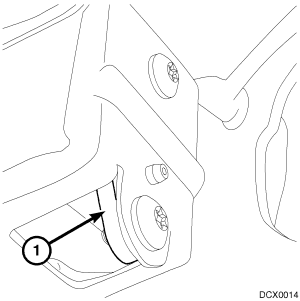

Belt Tension Sensor - Vehicles equipped with the Occupant Classification System (OCS) include a belt tension sensor. This sensor is integral to the passenger side front seat belt lower anchor which is secured to the floor, out board and rear of the front passenger seat, concealed beneath an access cover on the seat belt assembly.
Vehicles with the SRS can also be identified by the Airbag Warning Indicator, which will illuminate in the Instrument Cluster (IC) for about six seconds as a bulb test each time the ignition switch is turned to the "RUN" position.
The Supplemental Restraint System (SRS) also includes the following major components:
Occupant Restraint Controller (ORC) - The Occupant Restraint Controller (ORC) is located on a mount on the top of the transmission tunnel (2) in front of the shifter, under the front center console.
ORC System Logic - The Supplemental Restraint System (SRS) uses an impact severity level (threshold) to determine the appropriate response from the ORC. Impacts that exceed the initial threshold in frontal, front-angled, and rear impacts trigger only the SBT that have the seat belt fastened. If the seat belt is not fastened, the system will not recognize the belt and not trigger the SBT. But, if the impact is severe enough, the airbags will be triggered even if the seat belts are not fastened. Impacts that exceed the higher threshold always trigger the airbags. The driver and passenger SRS systems operate independently of one another based on seat belt use. SBT actuation occurs only if the seat belts are buckled. After an impact that activates an SBT, the SBT assembly must be replaced. The ORC monitors operational readiness of the SRS and illuminates the airbag warning indicator lamp in the Instrument Cluster (IC) if a malfunction should occur. The following system components are monitored or undergo a self-check at startup. The side-impact sensor, airbag ignition circuits (squibs), seat belt buckle switches and the SBT. The airbag warning indicator lamp also illuminates briefly each time the engine is started, allowing the driver to verify its operation.
Airbag Warning Indicator Lamp - The airbag warning indicator lamp is integral to the Instrument Cluster (IC), which is located on the Instrument Panel (IP) in front of the driver.
Clockspring - The clockspring is located at the top of the steering column, directly beneath the steering wheel where it is attached to the column by two screws (1).
Front Impact Sensor - Two front impact sensors (1) are used on vehicles equipped with dual front airbags, one left side and one right side. The sensors are located on the rail tips, rearward of the bumper attachments.
Side Impact Sensor - Two side impact sensors (2) are installed, one left side and one right side. The sensors are mounted on the body cross brace in the center of the door sill plates directly under the carpet.

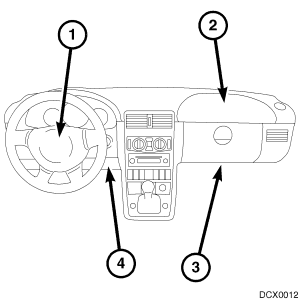

Driver Front Airbag - The driver front airbag (1) is located in the center of the steering wheel, as part of the steering wheel trim cover.
Passenger Front Airbag - The passenger front airbag (2) is located on the instrument panel structural duct, beneath the instrument panel top pad and above the glove box.
Passenger Knee Blocker Airbag - The passenger knee blocker airbag (3) is concealed below the glove box door.
Driver Knee Blocker Airbag - The driver knee blocker airbag (4) is secured to the instrument panel behind the steering column opening cover.

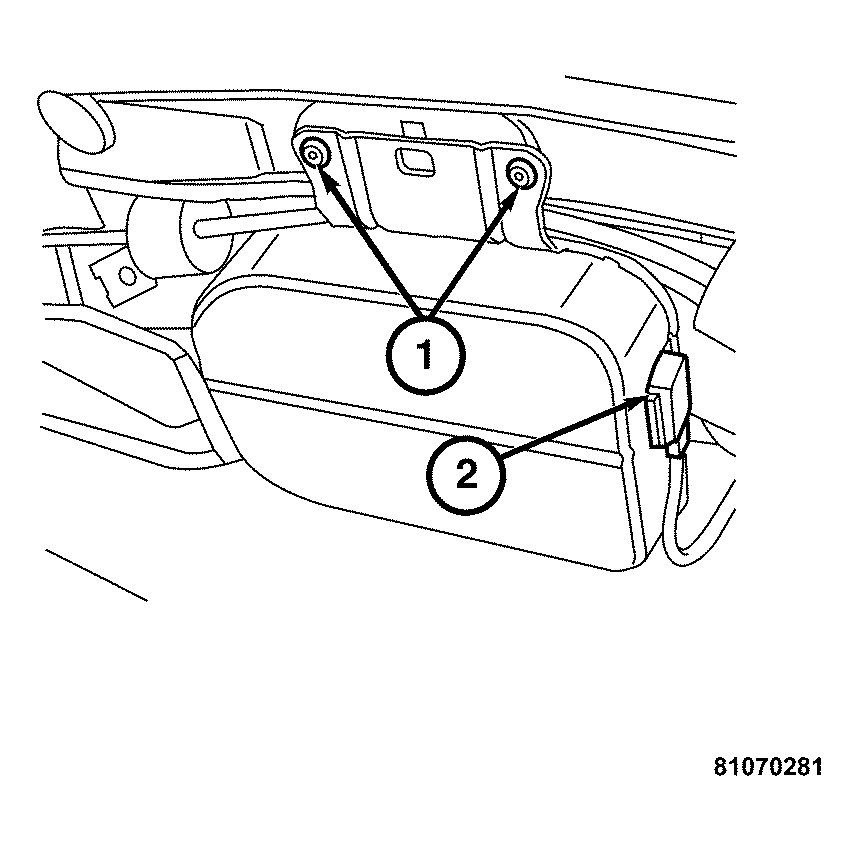

Side Impact Airbag - The side impact airbags are concealed behind the door trim panels above the armrest. The side impact airbag is riveted (1) to the door's interior structure and activated by a squib (2). SRS logos on the trim panels denote the presence of the airbags. If the airbag is triggered during a lateral collision, the airbag tears open a seam on the inner door trim and inflates within 0.007 seconds to form a protective cushion between the passenger and the door. Thus the impact on the passenger's thorax and the ejecting motion of the head, which might otherwise cause serious injuries, are reduced.

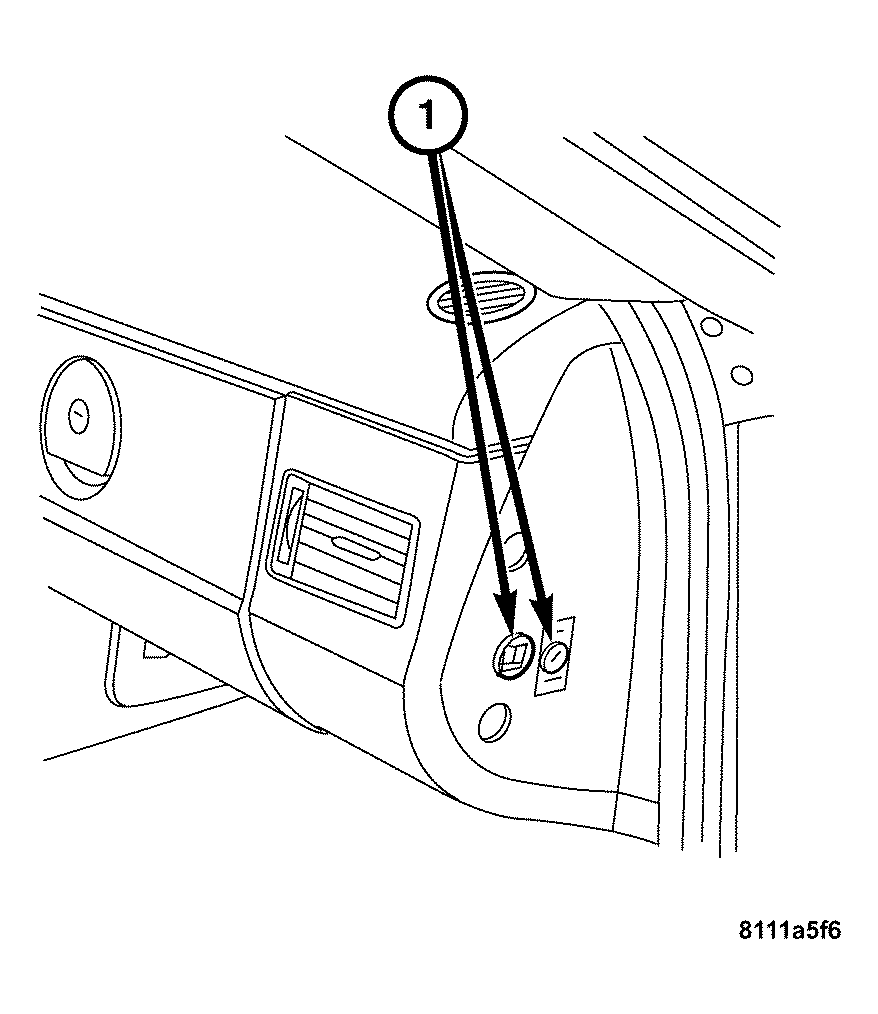

The passenger front air bag can be deactivated when a child seat or small child occupies that seat by using the ignition key to turn the switch (1) to the OFF position. This will illuminate the passenger airbag OFF warning lamp on the center console. This indicates that the passenger front airbag is deactivated. The passenger front airbag will not be activated until the switch is turned to the ON position and the passenger airbag OFF warning lamp goes out.

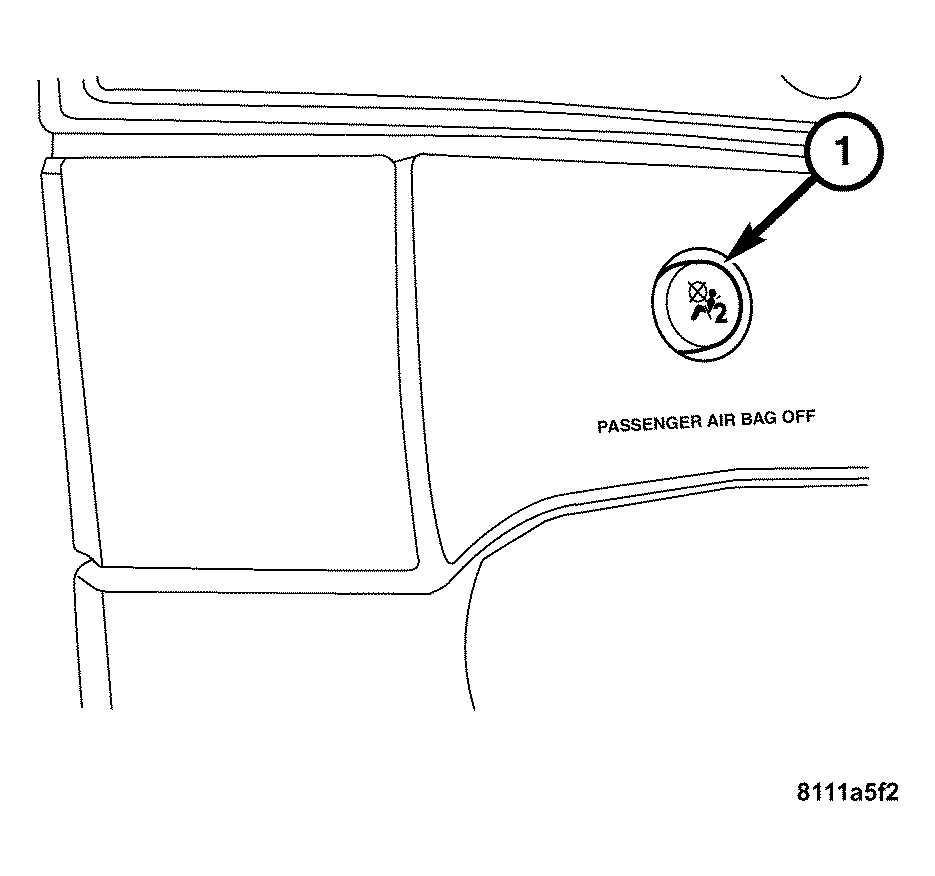

The passenger airbag off warning lamp (1) in the center console illuminates when the air bag is deactivated.
The ORC and the Instrument Cluster (IC) each contain a central processing unit and programming that allow them to communicate with each other using the Controller Area Network (CAN). This method of communication is used by the ORC for control of the airbag indicator lamp.
Hard wired circuitry connects the SRS components to each other through the electrical system of the vehicle. These hard wired circuits are integral to several wire harnesses, which are routed throughout the vehicle and retained by many different methods. These circuits may be connected to each other, to the vehicle electrical system, and to the SRS components through the use of a combination of soldered splices, splice block connectors, and many different types of wire harness terminal connectors and insulators. Refer to the appropriate wiring information. The wiring information includes wiring diagrams, proper wire and connector repair procedures, further details on wire harness routing and retention, as well as pin-out and location views for the various wire harness connectors, splices and grounds.
