Module, Occupant Classification

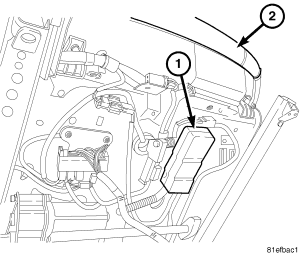

Fig 1: OCM

Courtesy of CHRYSLER LLC

The Occupant Classification Module (1) is located under the passenger seat cushion (2). This component is not serviceable separately from the seat cushion foam. When replaced as an assembly, the complete service kit (seat cushion, bladder/sensor, OCM, and new wiring harness) MUST be used. Refer to REMOVAL .
