Fuel Pump Module
| 1 - FUEL SUPPLY |
| 2 - FUEL PUMP MODULE |
| 3 - FUEL GAGE SENDING UNIT FLOAT |
| 4 - FUEL PUMP |
| 5 - FUEL RETURN |

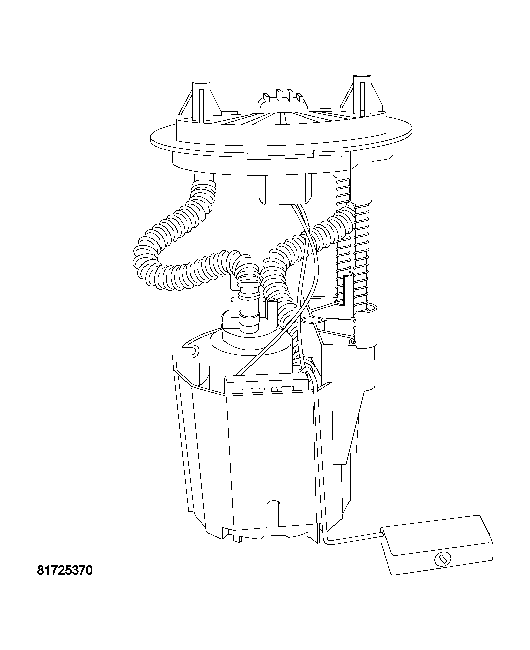

The fuel pump module is located in the fuel tank and consists of a fuel pump, fuel contaminant filtering screen, fuel reservoir and fuel tank level monitoring devise. The fuel pump is a high pressure, high flow pump regulated to 4.3 - 5.9 bar (62 - 85 psi), in order to maintain an adequate supply of fuel to the high pressure injection pump. See Fig 1.
