Fuel Tank

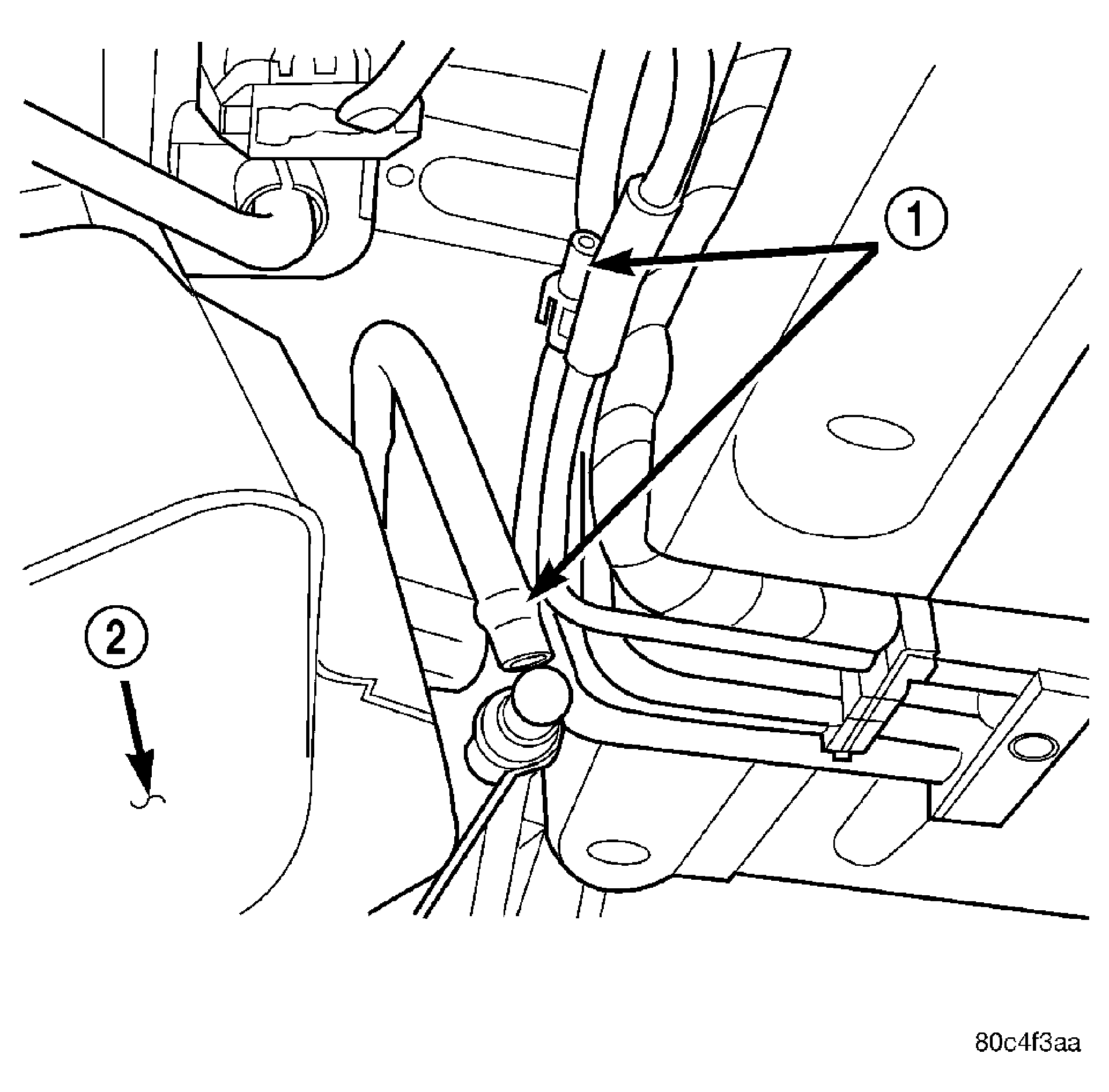

Fig 1: Fuel Line

Courtesy of CHRYSLER LLC

1 - FUEL LINE

2 - FUEL TANK

Position fuel tank on transmission jack.
Raise fuel tank into position.
Connect vacuum line to LDP.
Install EVAP line and recirculation line.

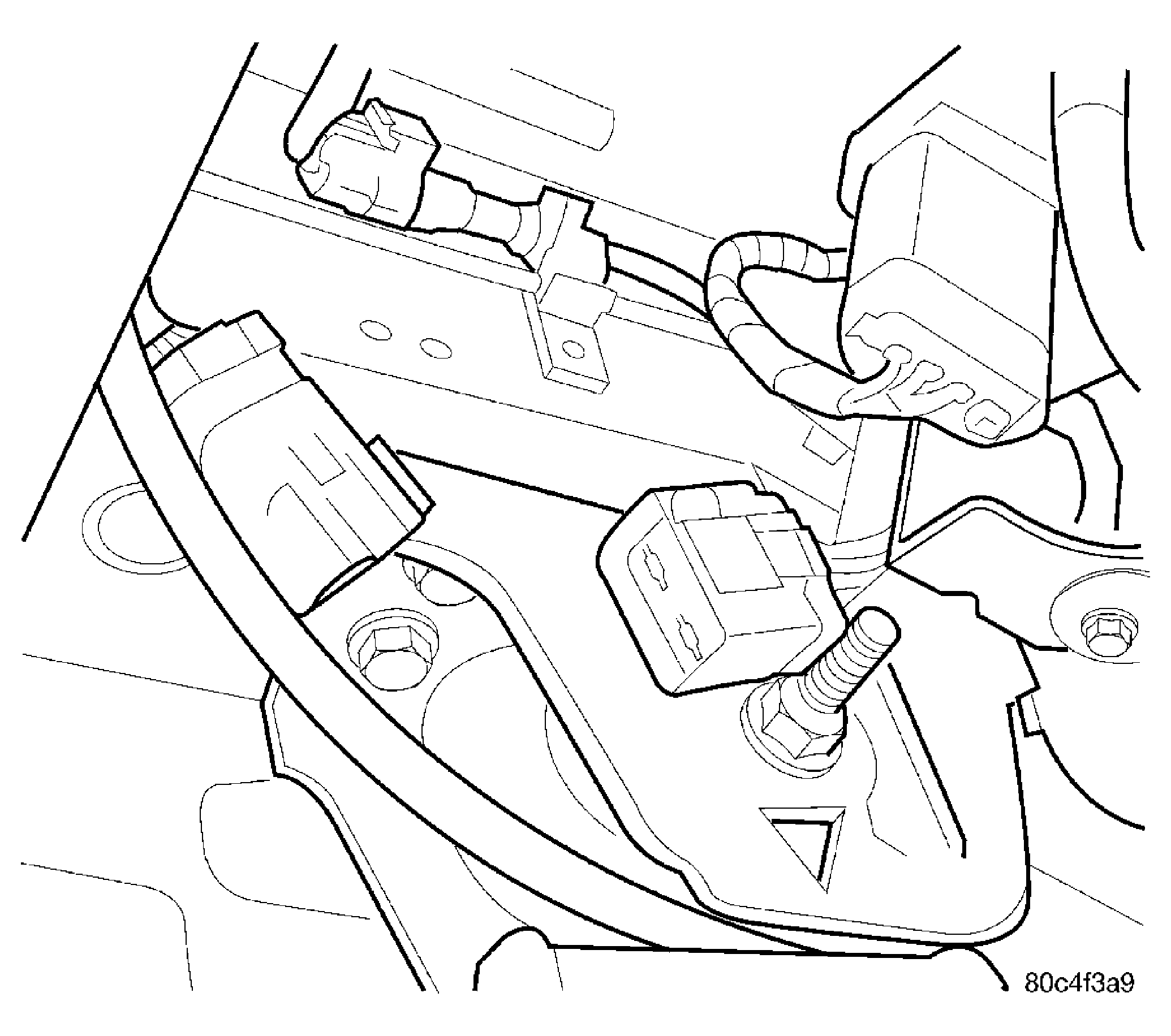

Fig 2: Electrical Connector
Courtesy of CHRYSLER LLC
Connect electrical connector and lock the connector.
Connect the fuel line. Refer to Refer to QUICK-CONNECT FITTINGS .
Connect fuel fill tube to tank inlet. Tighten hose clamp to 4.1 N.m (38 in. lbs.) torque.

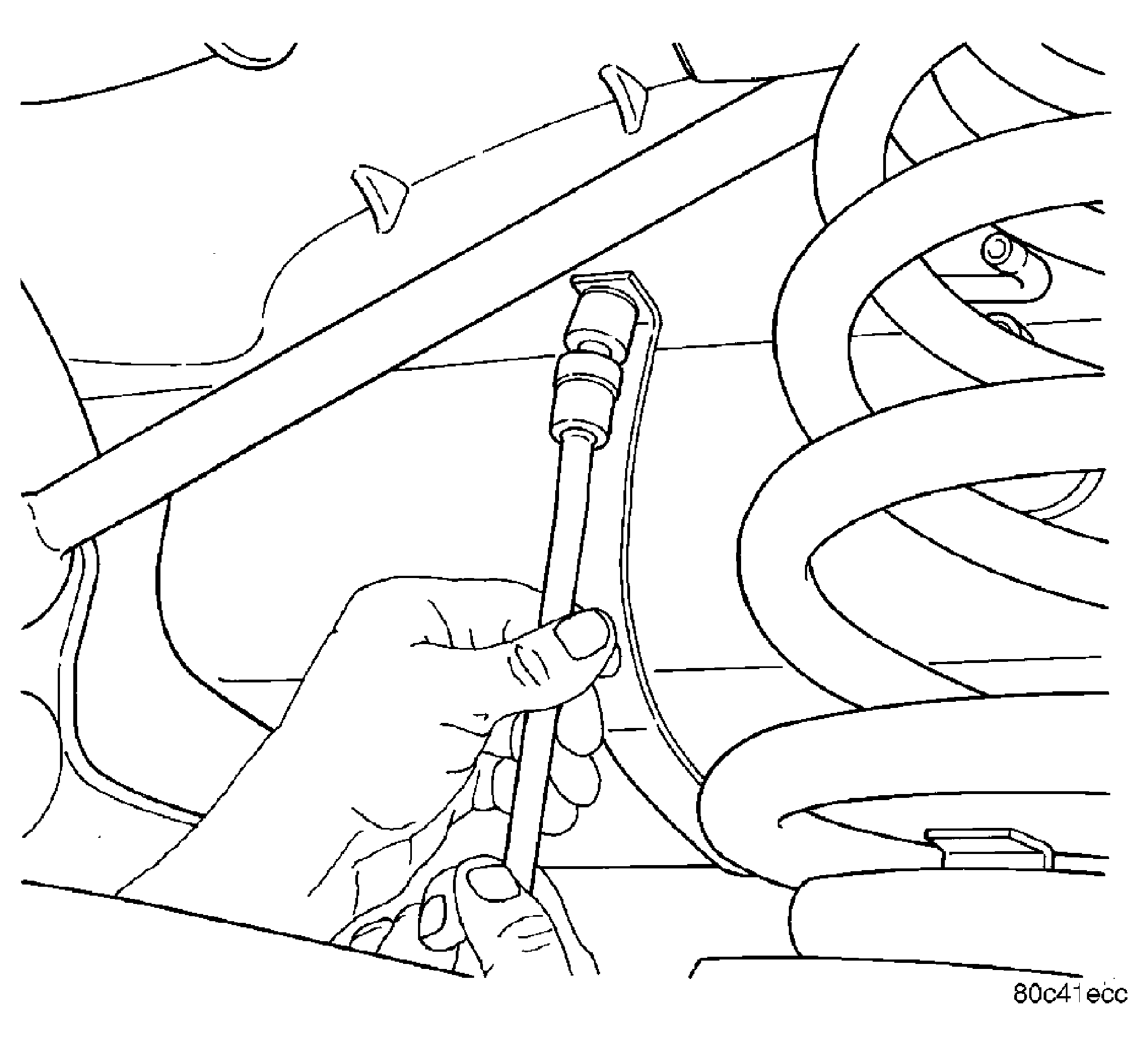

Fig 3: Fuel Tank Straps
Courtesy of CHRYSLER LLC
Position fuel tank straps. Tighten fuel tank strap bolts to 22.5 N.m (200 in. lbs.) torque. Remove transmission jack. Ensure straps are not twisted or bent.
Lower vehicle.
Fill fuel tank, install filler cap.
Install the negative battery cable.
Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
Use the scan tool ASD Fuel System Test to pressurize the fuel system. Check for leaks.
