Fuel Injector
WARNING:
High-pressure fuel lines deliver fuel under extreme pressure from the injection pump to the injectors. This maybe as high as 1600bar (23,200psi). Use extreme caution when inspecting for high-pressure fuel leaks. Fuel under this amount of pressure can penetrate skin causing personal injury or death. Inspect high-pressure fuel leaks with a sheet of cardboard. Wear safety goggles and adequate protective clothing when servicing fuel system.
CAUTION:
PAY CLOSE ATTENTION TO THE FOLLOWING POINTS WHEN REMOVING FUEL INJECTORS:
- Injectors MUST be removed only using the special tools provided for this purpose.
- Injectors MUST NOT be disassembled.
- Before cleaning injector recesses, seal all injector holes in the injector recesses with a pin.
- Clean all injector recesses in the cylinder head with a non-woven cloth and then a cylinder brush.
- Carefully clean sealing surfaces of injector recesses with the round brush. DO NOT us a power brush.

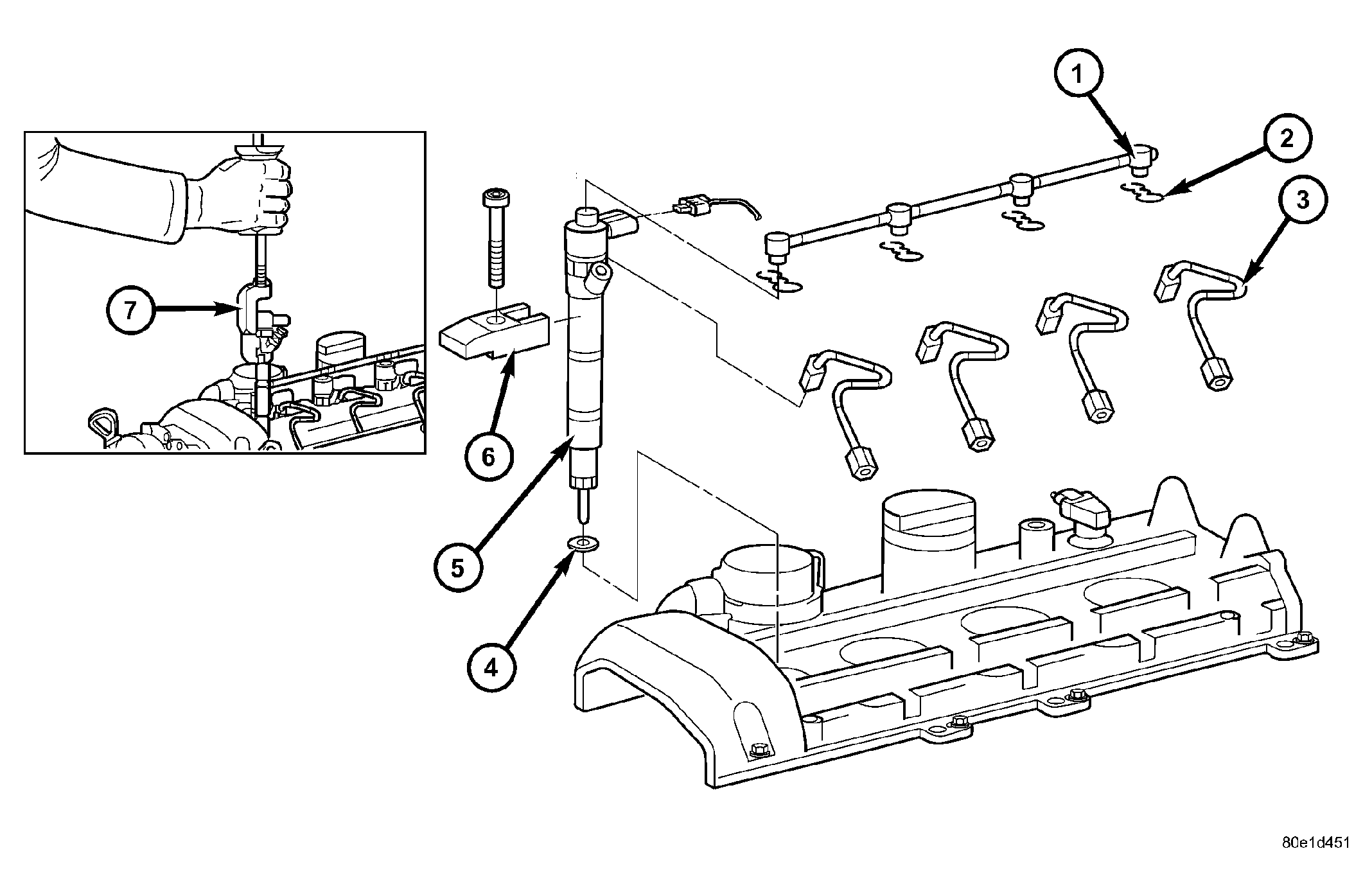

| 1 - INJECTOR DRAIN TUBES |
| 2 - RETAINING CLIP |
| 3 - INJECTOR HIGH PRESSURE LINE |
| 4 - INJECTOR SEAL |
| 5 - FUEL INJECTOR |
| 6 - TENSIONING CLAW |
| 7 - SPECIAL TOOLS #8938 AND #8937 |
- Disconnect negative battery cable.
- Remove engine cover.
- Disconnect fuel injector supply line (3) from injector (5) and fuel rail and remove from engine. See Fig 1. See REMOVAL .NOTE: If injectors are tight and cannot be removed by hand, remove with slide hammer 8937 and extraction claw 8938. See Fig 1.
- Remove fuel injector retaining bolt and tensioning claw (6). See Fig 1.
- Remove fuel injector (5) from cylinder head. See Fig 1.
