Intake Air Temperature Sensor

This sensor is used to monitor the intake air temperature. See Fig 1.

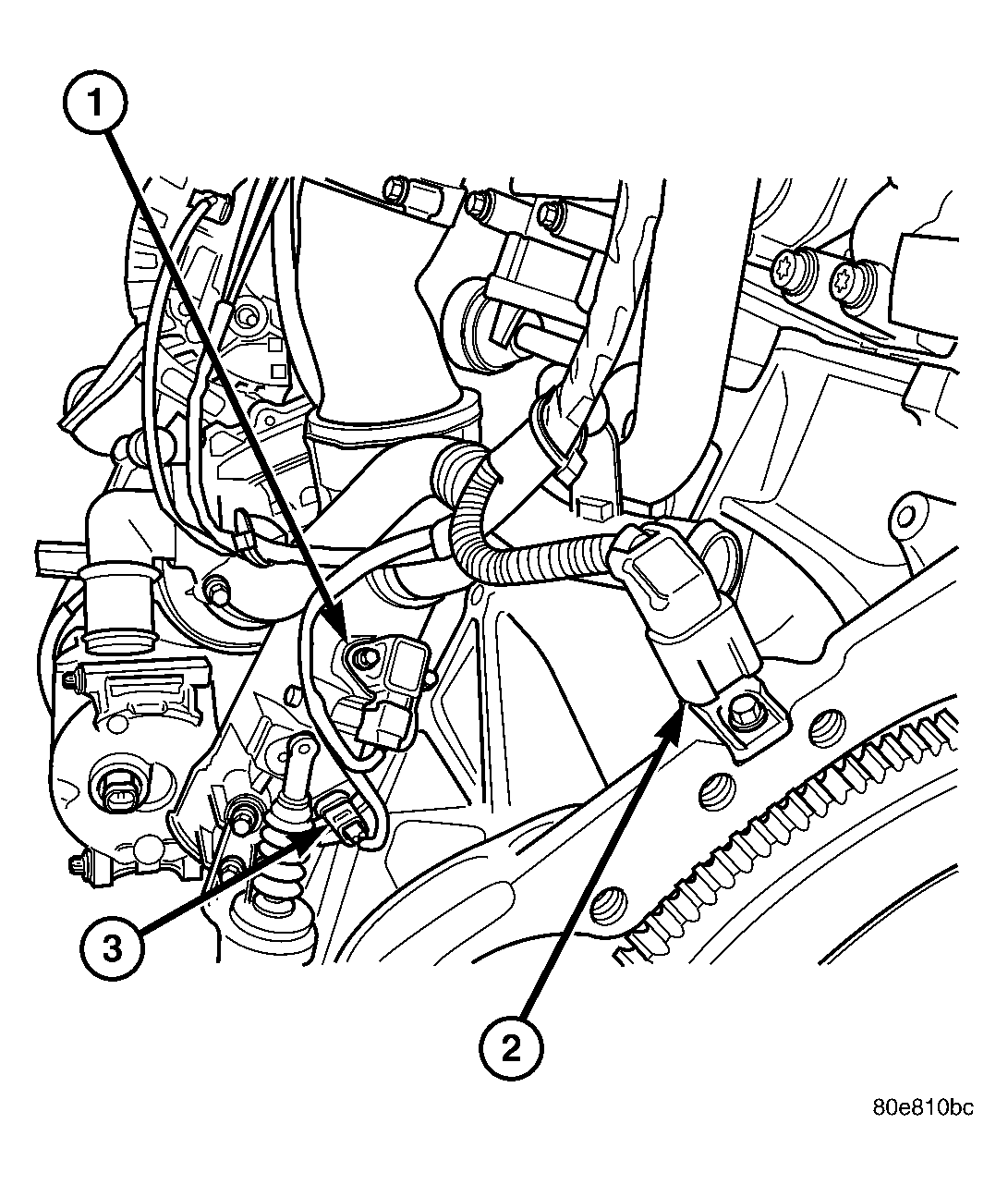

Fig 1: Sensor Locations
GC0041499Courtesy of CHRYSLER LLC
1 - BOOST PRESSURE SENSOR
2 - CRANKSHAFT POSITION (CKP) SENSOR
3 - INTAKE AIR TEMPERATURE SENSOR
