Inlet Air Temperature Sensor

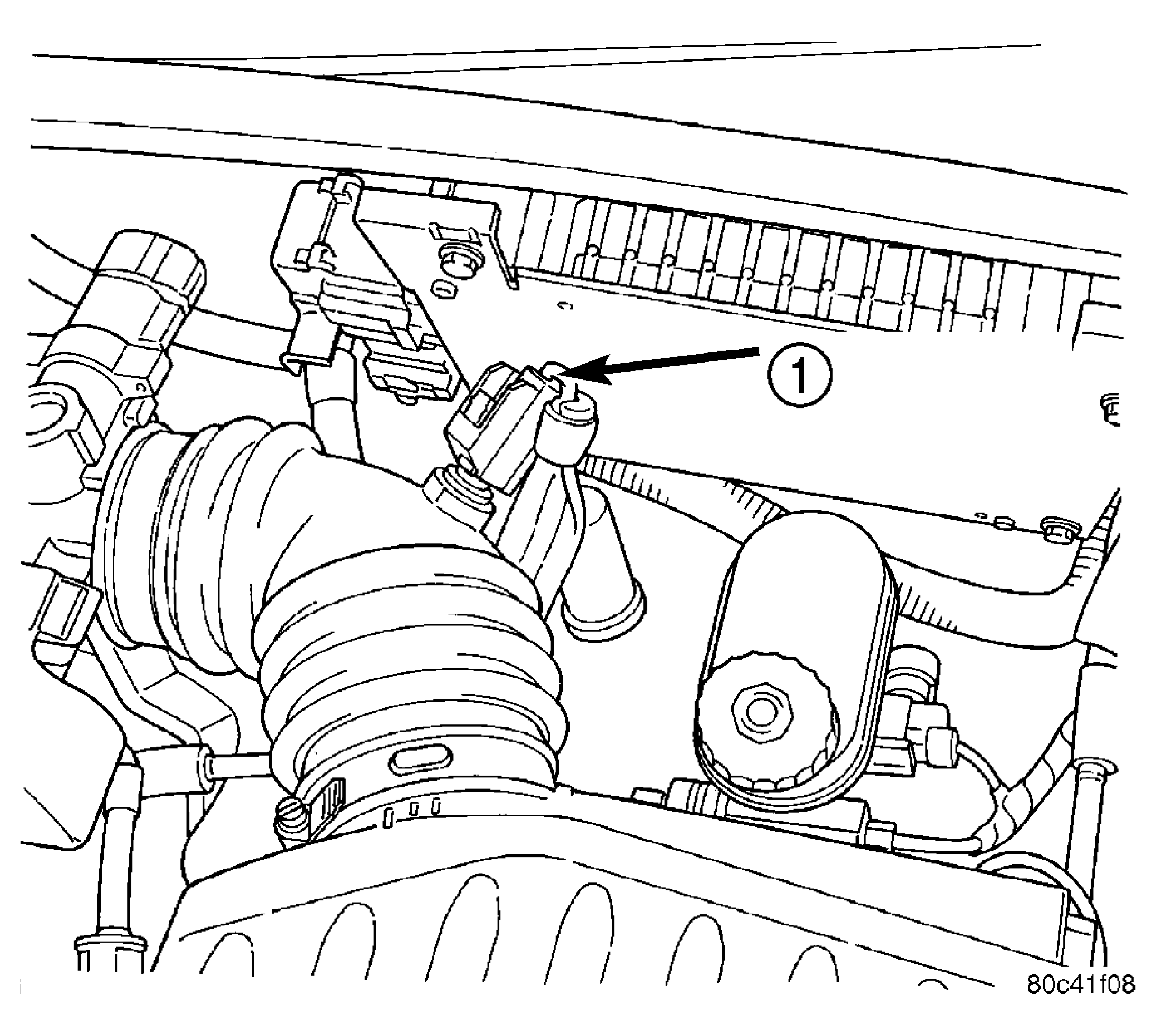

Fig 1: Inlet Air Temperature Sensor

Courtesy of CHRYSLER LLC

The sensor is located in the clean air duct (1)

1. Unlatch or unbolt the air cleaner lid.
2. Lift air cleaner lid and reposition.
3. Disconnect the negative battery cable.
4. Disconnect electrical connector from the sensor.
5. Remove the sensor.
