Sensor-Map - 4.0L

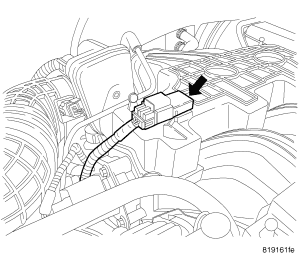

Fig 1: MAP Sensor 4.0L
GC0049845Courtesy of CHRYSLER LLC
  1. Disconnect negative battery cable.
  2. Disconnect the electrical connector from the MAP sensor.

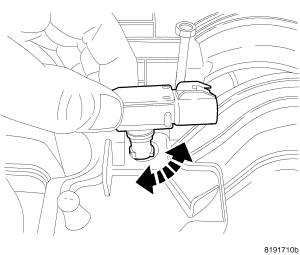

    Fig 2: Removing/Installing MAP
    GC0049846Courtesy of CHRYSLER LLC
  3. Rotate sensor and lift to remove.
