Manifold Absolute Pressure (Map) Sensor - 2.7L

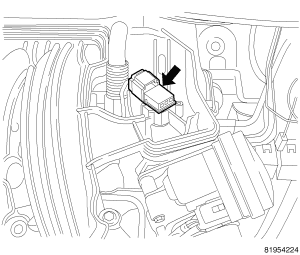

Fig 1: Locating MAP Sensor
GC0060567Courtesy of CHRYSLER LLC
  1. MAP sensor location.
  2. Remove the negative battery cable.

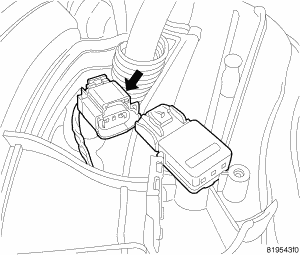

    Fig 2: Identifying MAP Sensor Electrical Connector
    GC0060568Courtesy of CHRYSLER LLC
  3. Disconnect the electrical connector from the MAP sensor.

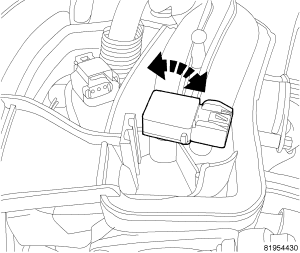

    Fig 3: Turning MAP Sensor To Remove/Install
    GC0060569Courtesy of CHRYSLER LLC
  4. Turn sensor counterclockwise.

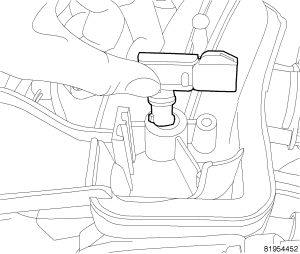

    Fig 4: Lifting Sensor To Remove
    GC0060570Courtesy of CHRYSLER LLC
  5. Lift sensor to remove.
