Sensor-Oxygen 1/2 - 2.0/2.4L

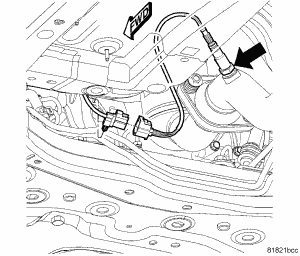

Fig 1: Identifying Oxygen Sensor 1.8/2.0L

Courtesy of CHRYSLER LLC

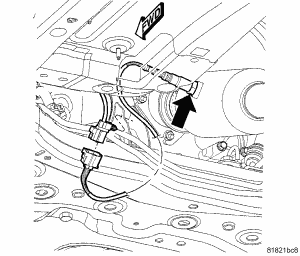

Fig 2: View Of Oxygen Sensor 2.4L

Courtesy of CHRYSLER LLC

The downstream heated oxygen sensor threads into the catalytic converter.

1. Remove the negative battery cable.
2. Raise vehicle and support.
3. Disconnect electrical connector from sensor.
4. Disconnect sensor electrical harness from clips along body.
5. Remove sensor using an oxygen sensor crow foot wrench such as Snap-On tool YA8875 or equivalent.
