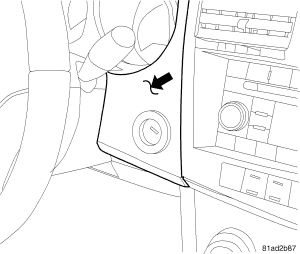

Ignition Switch: Removal: Switch-Ignition

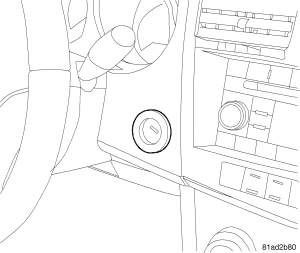

Fig 1: Locating Ignition Switch

Courtesy of CHRYSLER LLC

Ignition switch location.

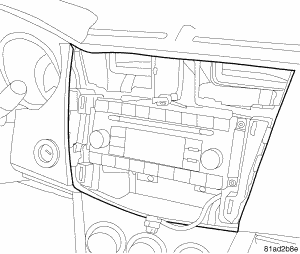

Fig 2: Identifying Center Stack Bezel
Courtesy of CHRYSLER LLC
Remove radio bezel, refer to REMOVAL .

Fig 3: Identifying Switch Cover Bezel
Courtesy of CHRYSLER LLC
Disconnect negative battery cable.
Remove instrument cluster bezel, refer to REMOVAL .
Remove the knee bolster, refer to REMOVAL .

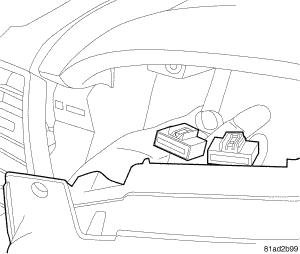

Fig 4: Identifying Cluster Connectors
Courtesy of CHRYSLER LLC
Disconnect two electrical connectors from the back of instrument cluster.

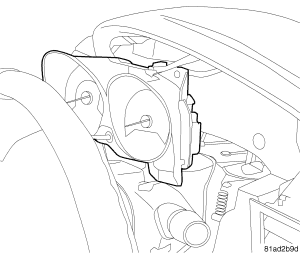

Fig 5: Relocating Cluster
Courtesy of CHRYSLER LLC
Relocate instrument cluster to the left.

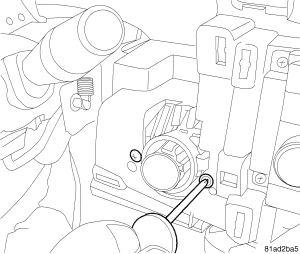

Fig 6: Removing/Installing Switch Mounting Screws
Courtesy of CHRYSLER LLC
Remove the two front mounting screws for ignition switch.

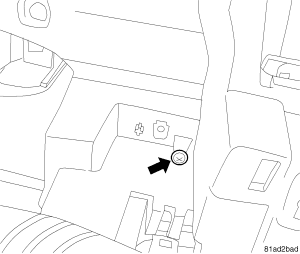

Fig 7: Identifying Switch Rear Mounting Screw
Courtesy of CHRYSLER LLC
Remove one rear mounting screw and washer from ignition switch.

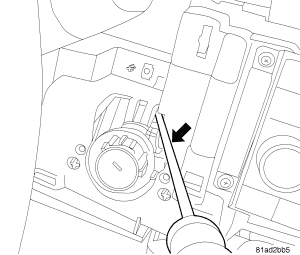

Fig 8: Identifying Switch Locking Tab
Courtesy of CHRYSLER LLC
Use a thin screw driver and unclip ignition switch from mounting position. Push switch back to remove.

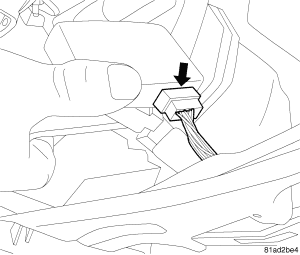

Fig 9: Identifying Module Electrical Connector
Courtesy of CHRYSLER LLC
Push switch back and down to opening from knee bolster area.

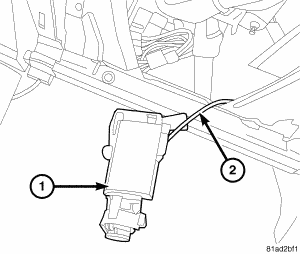

Fig 10: Identifying Inter Lock Cable
Courtesy of CHRYSLER LLC

1 - Ignition Switch Assembly

2 - Shift Interlock Cable
Disconnect shift interlock cable, refer to REMOVAL .
Remove ignition switch assembly.
