Plug-Spark - 2.0/2.4L

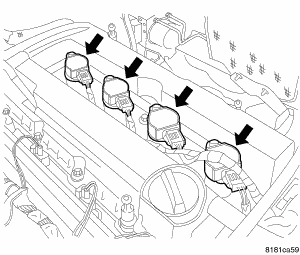

Fig 1: Locating Ignition Coils
GC0053387Courtesy of CHRYSLER LLC
  1. Disconnect the negative battery cable.
  2. Disconnect the electrical connectors from ignition coils.

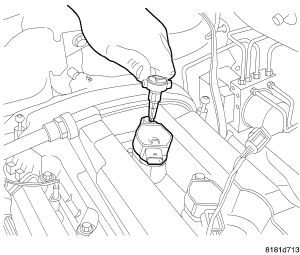

    Fig 2: Identifying Ignition Coil Bolt
    GC0053388Courtesy of CHRYSLER LLC
  3. Remove the ignition coil mounting bolt.

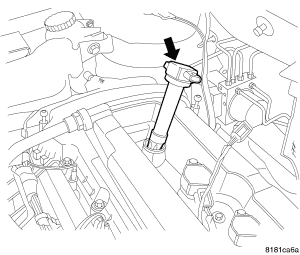

    Fig 3: View Of Ignition Coil Removed
    GC0053389Courtesy of CHRYSLER LLC
  4. Twist the ignition coil then pull straight up.

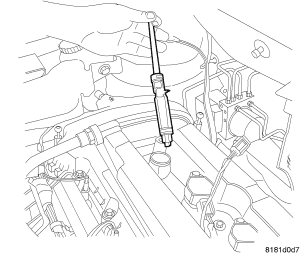

    Fig 4: View Of Spark Plug Removed
    GC0053393Courtesy of CHRYSLER LLC
  5. Remove the spark plug using a quality socket with a rubber or foam insert.
  6. Inspect the spark plug condition.
