*Checking The Charging System Operation: Notes

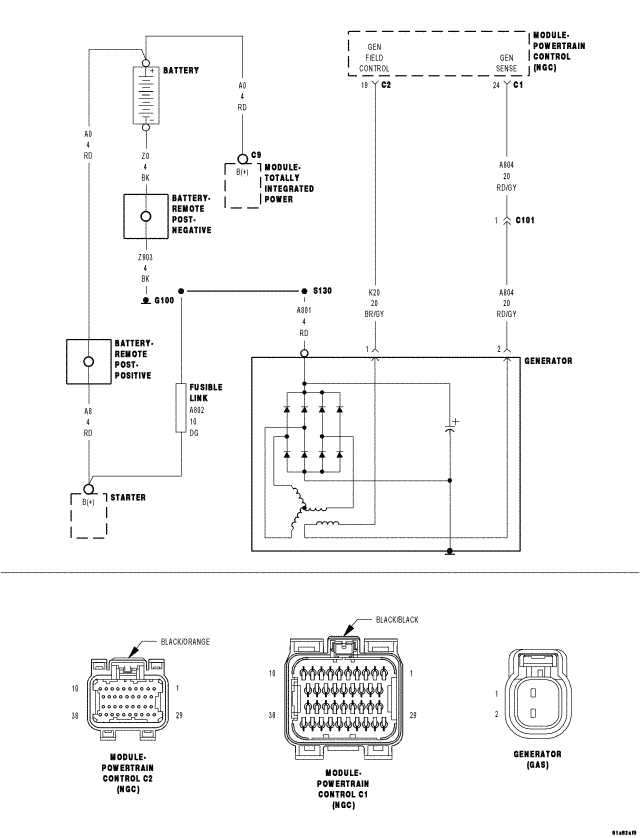

Fig 1: Charging System Circuit Schematic
GC0059413Courtesy of CHRYSLER LLC

For complete wiring diagrams, refer to SYSTEM WIRING DIAGRAMS .
