Sensor - Map - 6.1L

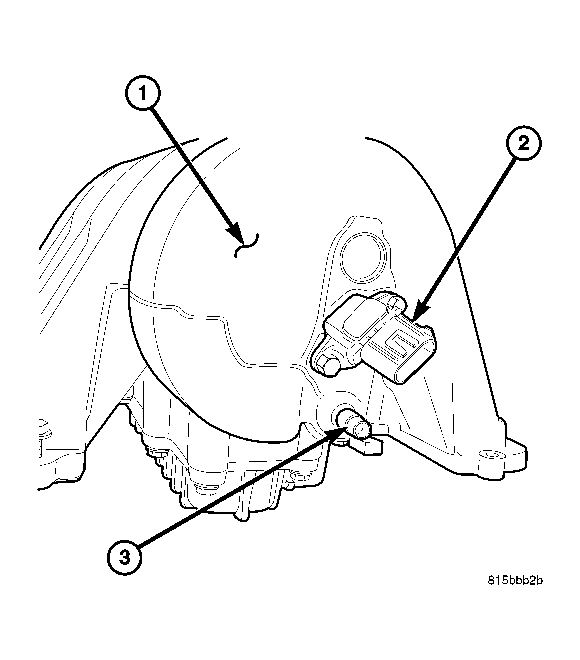

Fig 1: MAP Sensor Location - 6.1L

Courtesy of CHRYSLER LLC

The Manifold Absolute Pressure (MAP) sensor (2) is located at the rear of the intake manifold (1).

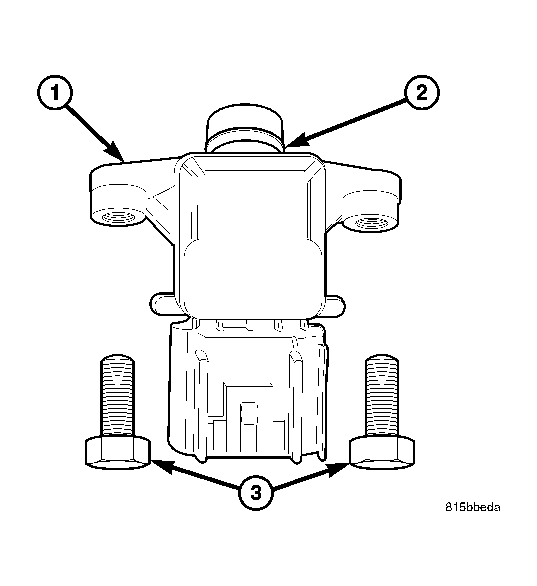

Fig 2: MAP Sensor Mounting - 6.1L

Courtesy of CHRYSLER LLC

1. Disconnect electrical connector at sensor.
2. Remove two sensor mounting bolts (3).
3. Check condition of sensor o-ring (2).
