Remote Keyless Entry Relay

REMOTE KEYLESS ENTRY RELAY

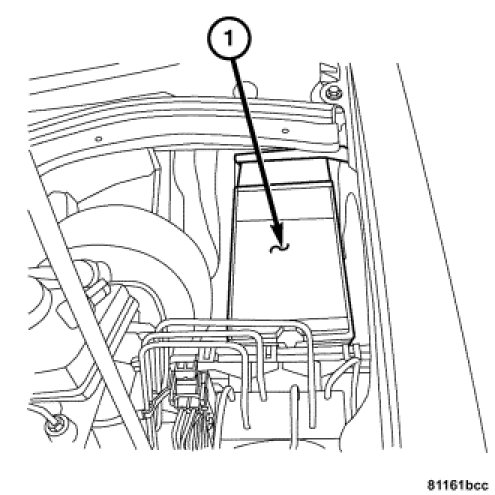

1. Remove the underhood accessory fuse block lid (1).

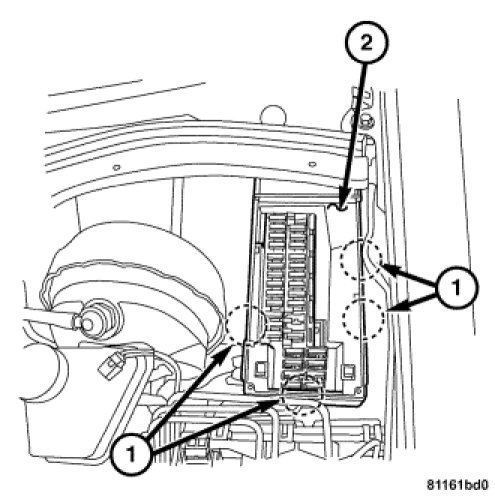

2. Carefully release the four tabs (1) to remove the underhood accessory fuse block cover panel (2).

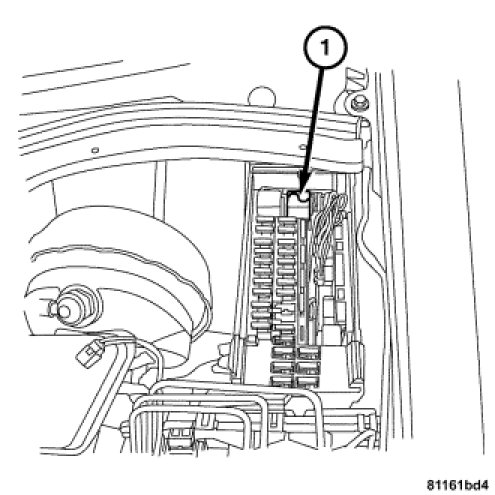

3. Remove the remote keyless entry relay (1).
