Sentry Key Antenna Ring

SENTRY KEY ANTENNA RING





1. Remove the instrument cluster. Instrument Cluster - Removal.

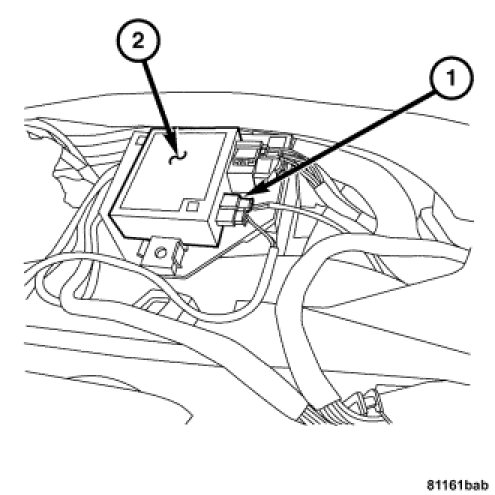

2. Disconnect the sentry key antenna ring electrical connector (1) from the sentry key remote entry module (2).




NOTE: Before disassembly, note the wire harness routing for proper reassembly.

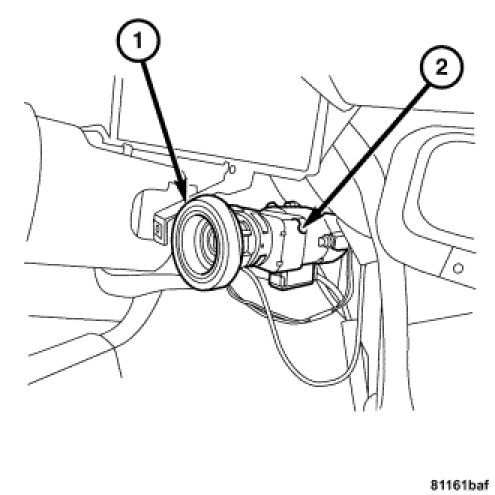

3. Pull to remove the sentry key antenna ring (1) from the ignition switch key cylinder (2).
