Mirrors: Locations

Component ID: 264
Component : RIGHT POWER MIRROR

Connector:
Name : RIGHT POWER MIRROR
Color : BLACK
# of pins : 6




Pin Circuit Description
1 18PK/RD/WT FUSED HEATED MIRROR SUPPLY
2 18BR GROUND
3 - -
4 18WT RIGHT MIRROR VERTICAL DRIVER
5 18GY RIGHT MIRROR COMMON DRIVER
6 18BK RIGHT MIRROR HORIZONTAL DRIVER

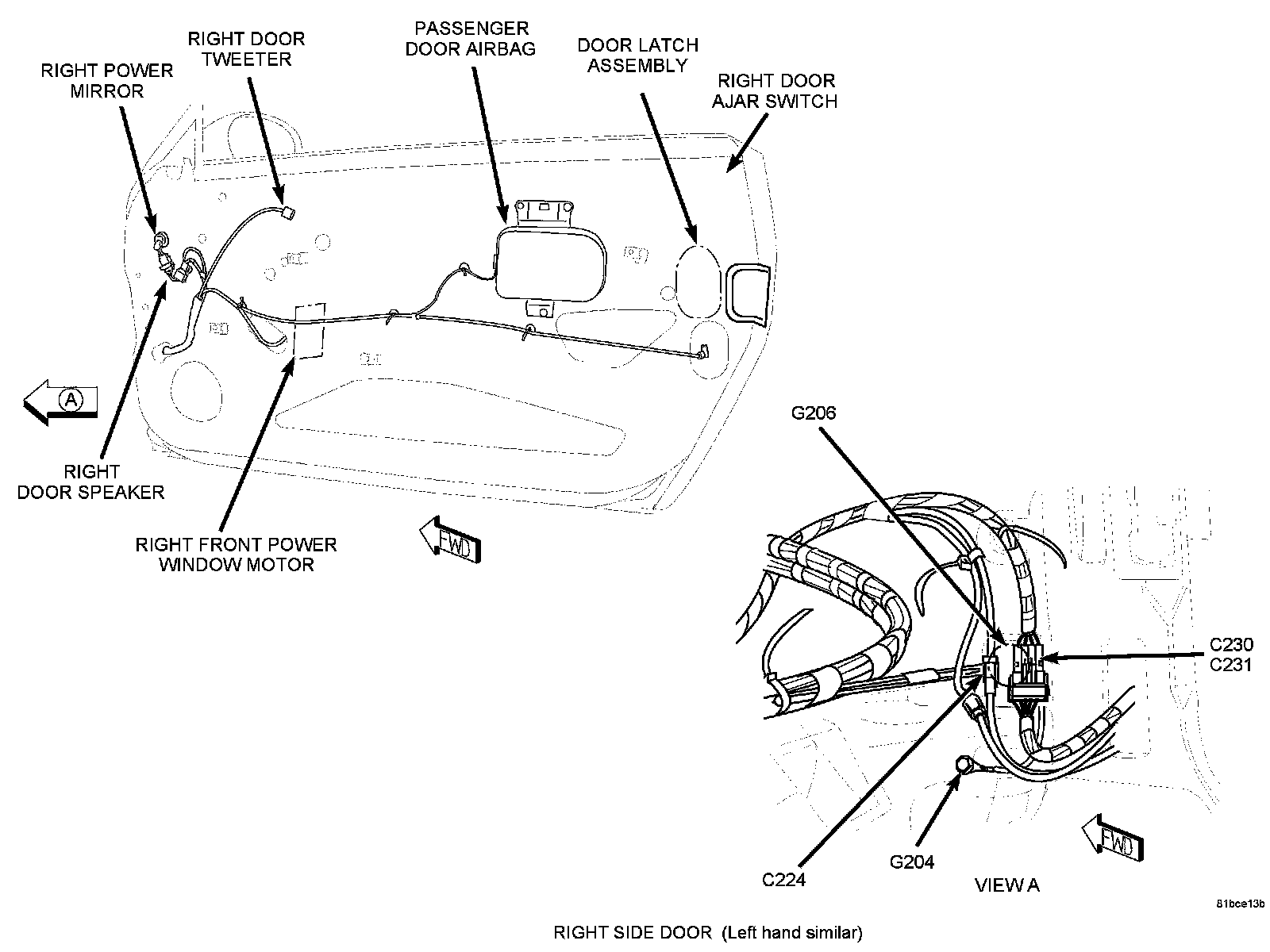

Component Location - 20
