Ambient Temperature Sensor / Switch HVAC

Component ID: 9

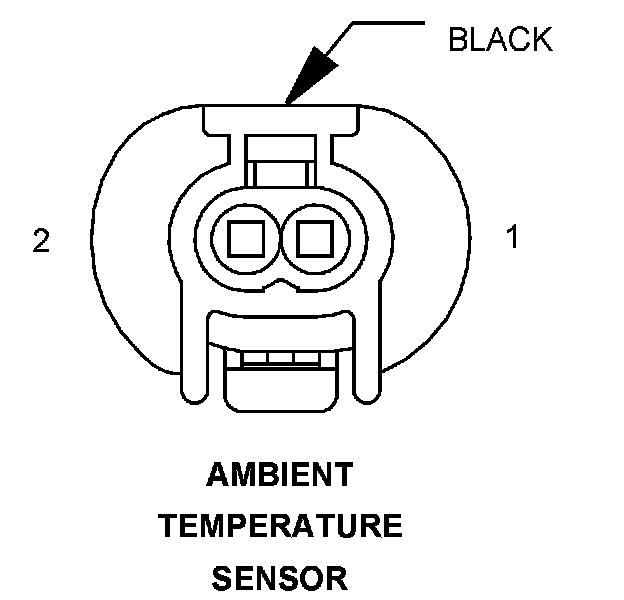

Component : AMBIENT TEMPERATURE SENSOR

Connector:
Name : AMBIENT TEMPERATURE SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20DG AMBIENT TEMPERATURE SENSOR SIGNAL
2 20BR SENSOR GROUND
