Brake Fluid Level Sensor/Switch

Component ID: 19

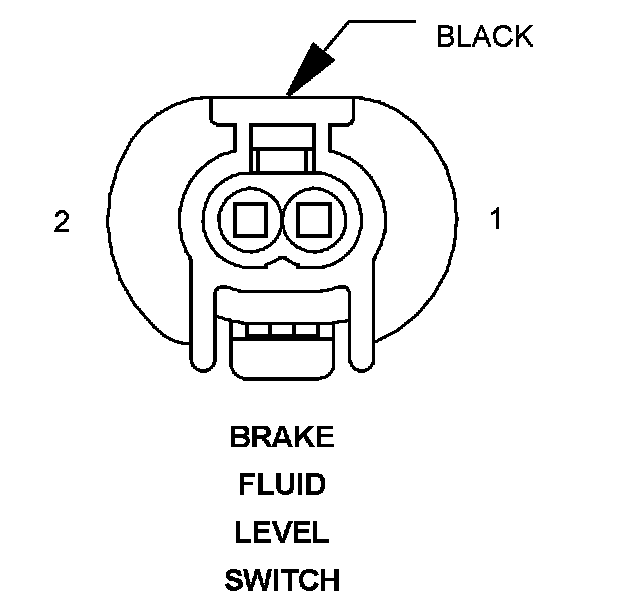

Component : BRAKE FLUID LEVEL SWITCH

Connector:
Name : BRAKE FLUID LEVEL SWITCH
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BR GROUND
2 20BR/WT BRAKE FLUID LEVEL SWITCH SENSE

Component Location - 2
