Brake Fluid Pressure Sensor/Switch

Component ID: 87

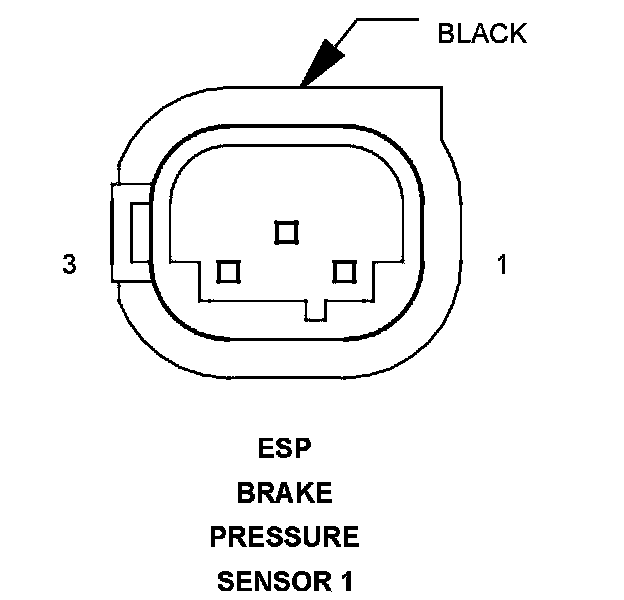

Component : ESP BRAKE PRESSURE SENSOR 1

Connector:
Name : ESP BRAKE PRESSURE SENSOR 1
Color : BLACK
# of pins : 3




Pin Circuit Description
1 20BR/BL SENSOR GROUND
2 20BL/WT ESP BRAKE PRESSURE SENSOR 1 SIGNAL
3 20BK/RD/WT 5 VOLT SUPPLY
