Convertible Top Latch Position Switch / Sensor

Component ID: 171

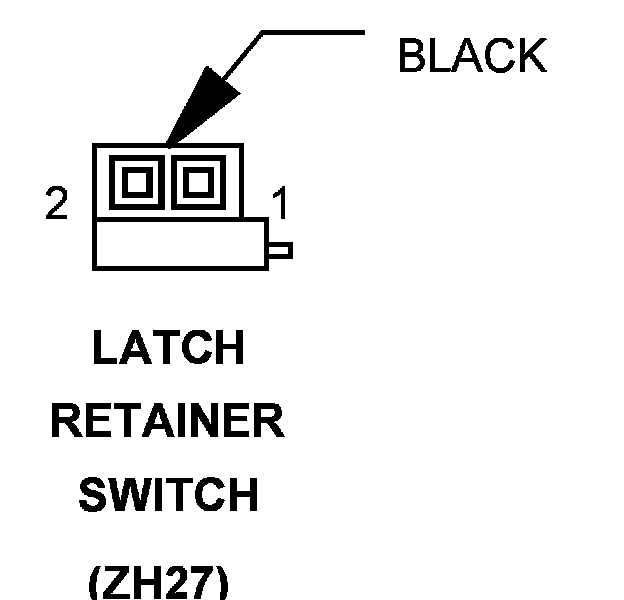

Component : LATCH RETAINER SWITCH

Connector:
Name : LATCH RETAINER SWITCH
Color : BLACK
# of pins : 2
Qualifier : (ZH27)




Pin Circuit Description
1 20BR GROUND
2 20DG/WT LATCH RETAINER SWITCH SENSE
