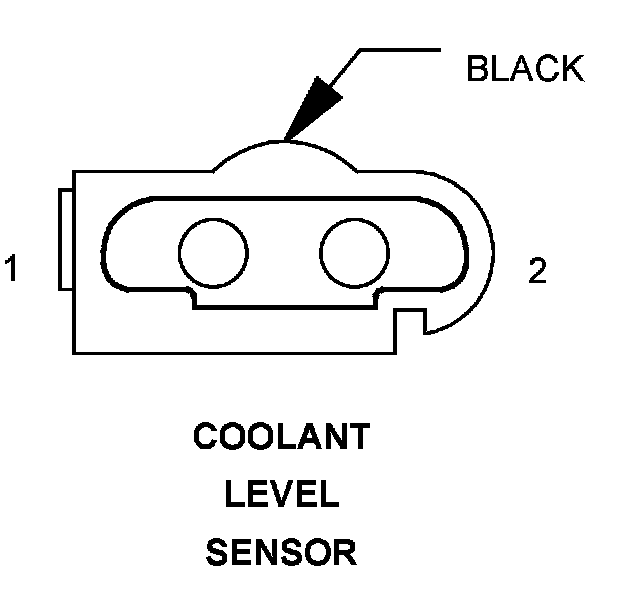

Coolant Level Sensor

Component ID: 65
Component : COOLANT LEVEL SENSOR

Connector:
Name : COOLANT LEVEL SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20BR/BL COOLANT/WASHER LEVEL COMBINATION
2 20BR/YL COOLANT/WASHER LEVEL SIGNAL
