EGR Control Solenoid

Component ID: 81

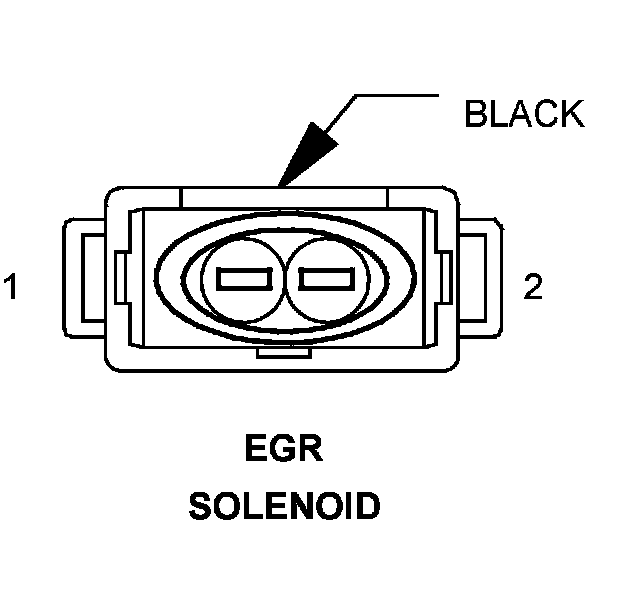

Component : EGR SOLENOID

Connector:
Name : EGR SOLENOID
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20GY/WT EGR SOLENOID CONTROL
2 20RD/DG FUSED ENGINE CONTROL RELAY OUTPUT

Component Location - 9
