Engine Fuse Block

Component ID: 84
Component : ENGINE FUSE BLOCK

Connector:

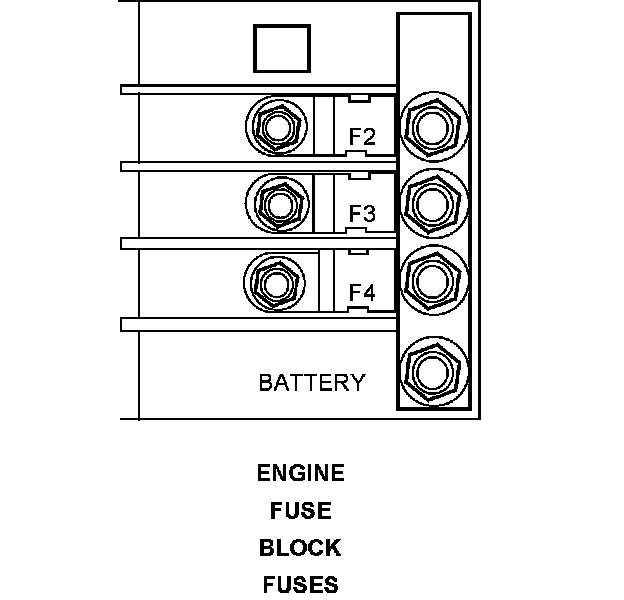

Name : ENGINE FUSE BLOCK FUSES
Color :
# of pins : 0




Pin Circuit Description
1 - -
2 8BK FUSED B(+)
3 12BK FUSED B(+)
3 10BK FUSED B(+)
4 10BK FUSED B(+)
4 10BK FUSED B(+)
5 - -

Component Location - 1




Component Location - 6
