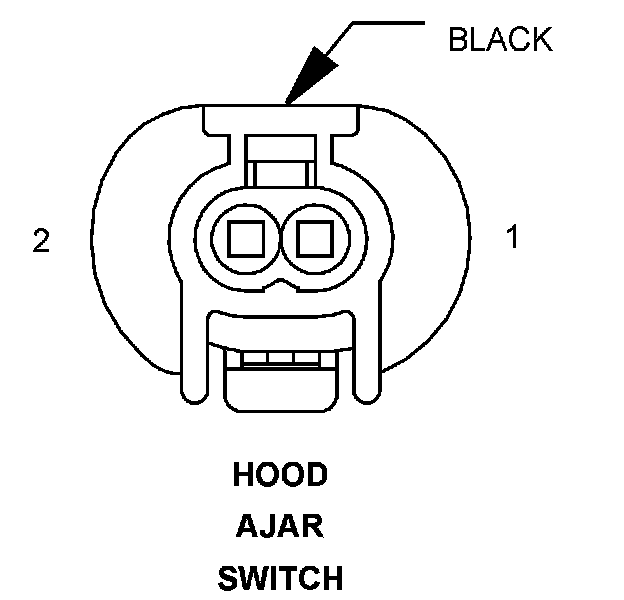

Hood Sensor/Switch (For Alarm)

Component ID: 159
Component : HOOD AJAR SWITCH

Connector:
Name : HOOD AJAR SWITCH
Color : BLACK
# of pins : 2




Pin Circuit Description
1 18BR/RD HOOD AJAR SWITCH SENSE
2 18BR GROUND
