Left Front Impact Sensor

Component ID: 176

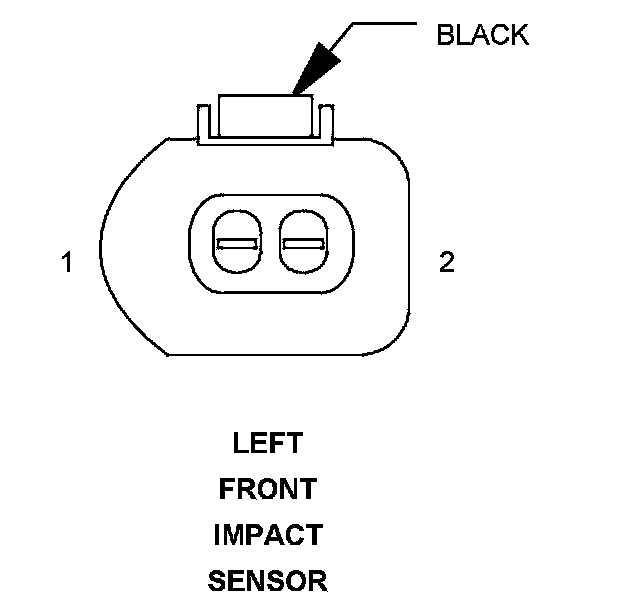

Component : LEFT FRONT IMPACT SENSOR

Connector:
Name : LEFT FRONT IMPACT SENSOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20YL/BK LEFT FRONT IMPACT SENSOR SIGNAL
2 20BR GROUND
