Left Side Impact Sensor

Component ID: 197

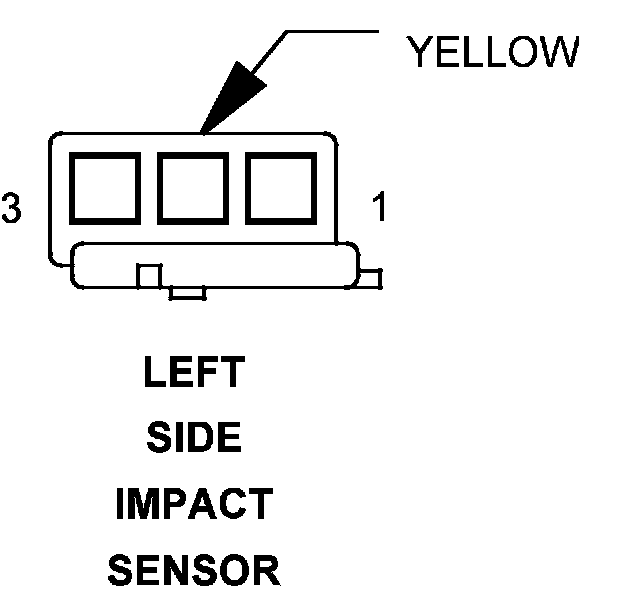

Component : LEFT SIDE IMPACT SENSOR

Connector:
Name : LEFT SIDE IMPACT SENSOR
Color : YELLOW
# of pins : 3




Pin Circuit Description
1 20BR GROUND
2 - -
3 20BL/YL LEFT SIDE IMPACT SENSOR SIGNAL

Component Location - 15
