Keyless Entry Relay

Component ID: 246
Component : REMOTE KEYLESS ENTRY RELAY

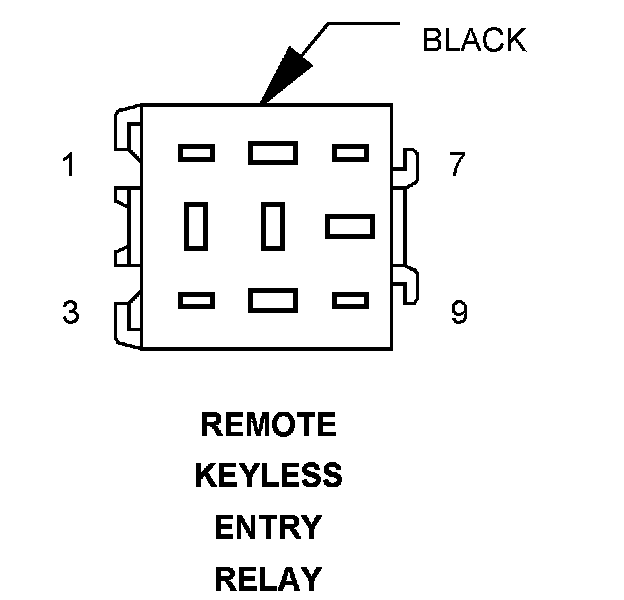

Connector:
Name : REMOTE KEYLESS ENTRY RELAY
Color : BLACK
# of pins : 9




Pin Circuit Description
1 - -
2 18BK/WT REMOTE KEYLESS ENTRY RELAY OUTPUT
3 - -
4 18RD/YL FUSED B(+)
5 18BK/DG REMOTE KEYLESS ENTRY RELAY OUTPUT
6 20BK/YL REMOTE KEYLESS ENTRY RELAY CONTROL
7 - -
8 14RD/YL FUSED B(+)
9 - -
