Neutral Safety Switch

Component ID: 52

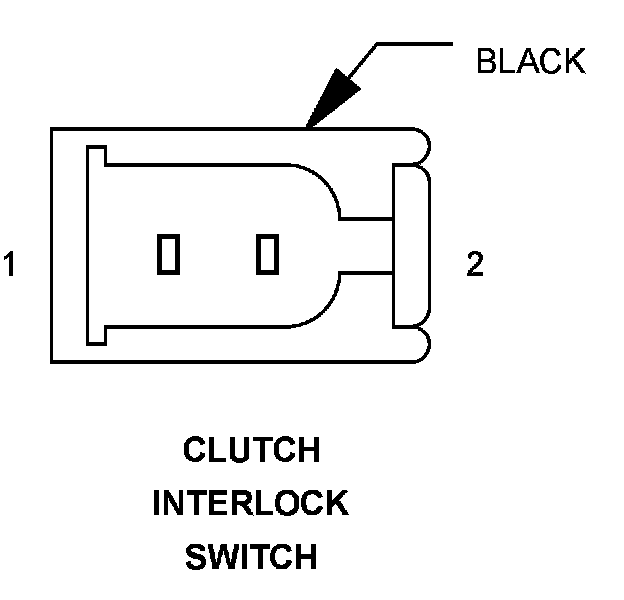

Component : CLUTCH INTERLOCK SWITCH

Connector:
Name : CLUTCH INTERLOCK SWITCH
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20VT FUSED IGNITION SWITCH OUTPUT
2 20VT CLUTCH INTERLOCK SWITCH OUTPUT
2 20VT CLUTCH INTERLOCK SWITCH OUTPUT
