Radiator Cooling Fan Control Module

Component ID: 234
Component : RADIATOR FAN CONTROL MODULE

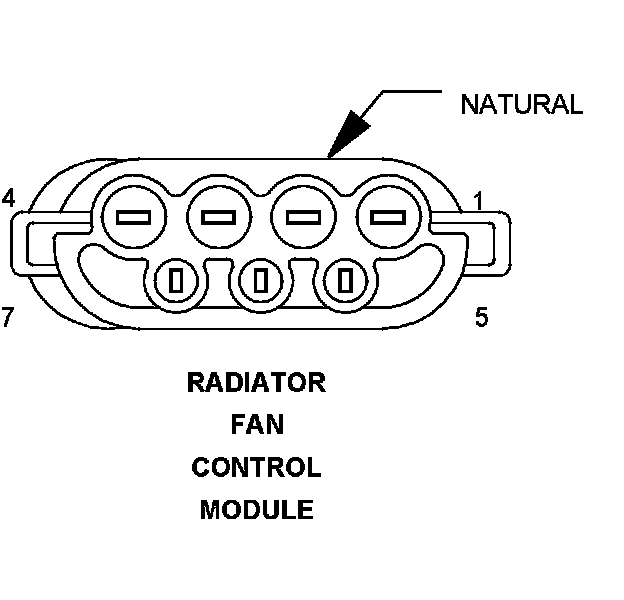

Connector:
Name : RADIATOR FAN CONTROL MODULE
Color : NATURAL
# of pins : 7




Pin Circuit Description
1 8BR/BK RADIATOR FAN CONTROL MODULE GROUND
2 8BR GROUND
3 8BK FUSED B(+)
4 8BK/DG RADIATOR FAN CONTROL MODULE OUTPUT
5 20GY RADIATOR FAN CONTROL
6 20PK/RD FUSED IGNITION SWITCH OUTPUT
7 - -

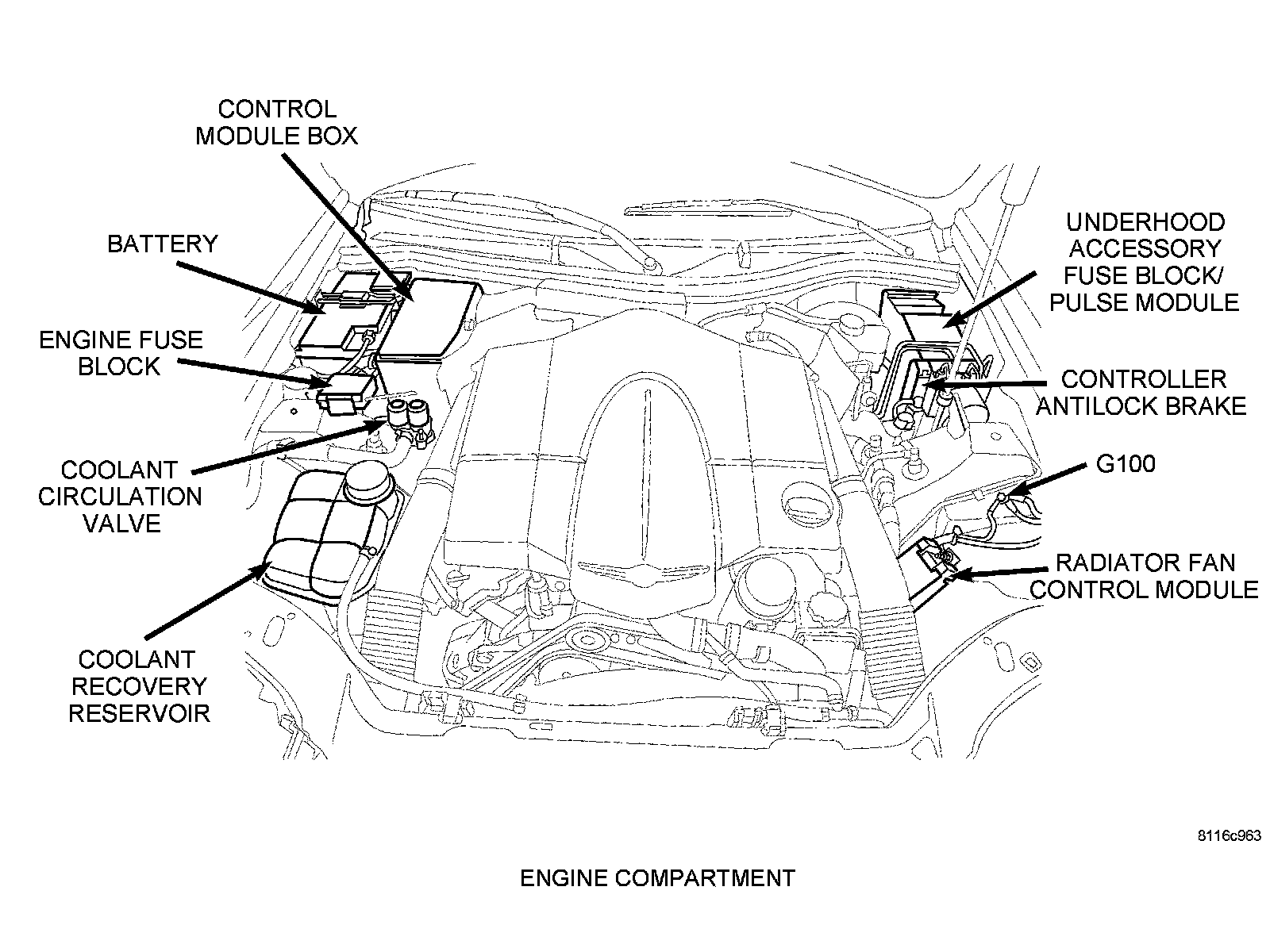

Component Location - 1




Component Location - 6
