Seat Occupant Sensor

Component ID: 224

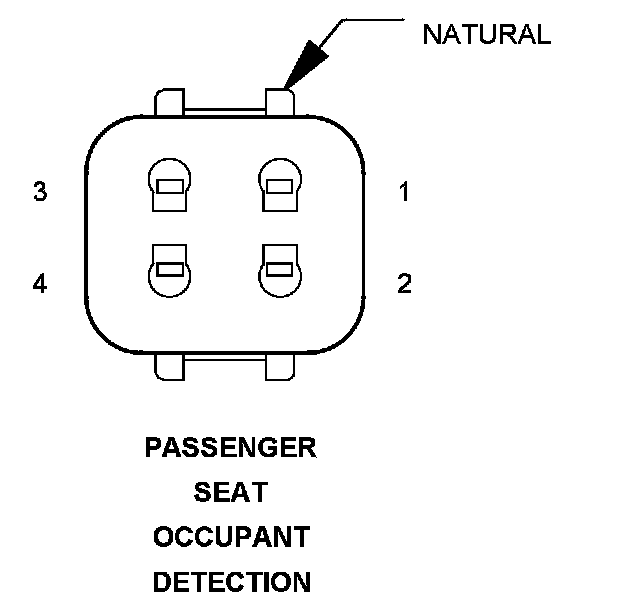

Component : PASSENGER SEAT OCCUPANT DETECTION

Connector:
Name : PASSENGER SEAT OCCUPANT DETECTION
Color : NATURAL
# of pins : 4




Pin Circuit Description
1 20RD/YL FUSED B(+)
2 20BR GROUND
3 20WT/DG CAN INTERIOR BUS (125K) (+)
4 20BK/DG CAN INTERIOR BUS (125K) (-)

Component Location - 16
