Seat Temperature Control Module

Component ID: 156

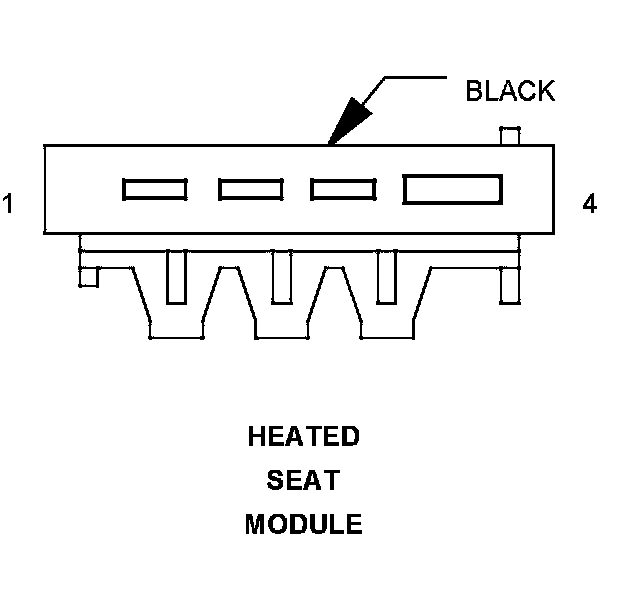

Component : HEATED SEAT MODULE

Connector:
Name : HEATED SEAT MODULE
Color : BLACK
# of pins : 4




Pin Circuit Description
1 16BK/VT RIGHT HEATED SEAT OUTPUT
2 20PK/YL/DG FUSED IGNITION SWITCH OUTPUT
3 16BK/GY LEFT HEATED SEAT OUTPUT
4 14RD/YL FUSED B(+)
