Anti-Theft Tow Sensor

Component ID: 11
Component : ANTI-THEFT TOW SENSOR

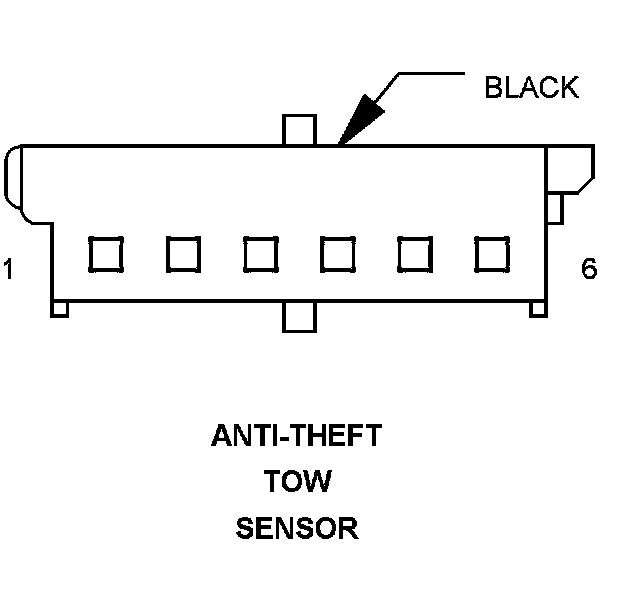

Connector:
Name : ANTI-THEFT TOW SENSOR
Color : BLACK
# of pins : 6




Pin Circuit Description
1 - -
2 - -
3 - -
4 22DG/GY SENSOR GROUND
5 18BR/DG ANTI-THEFT TOW SENSOR SIGNAL
6 18RD/GY FUSED B(+)

Component Location - 22




Component Location - 1
