Variable Induction Control Solenoid

Component ID: 332
Component : SHORT RUNNER VALVE SOLENOID

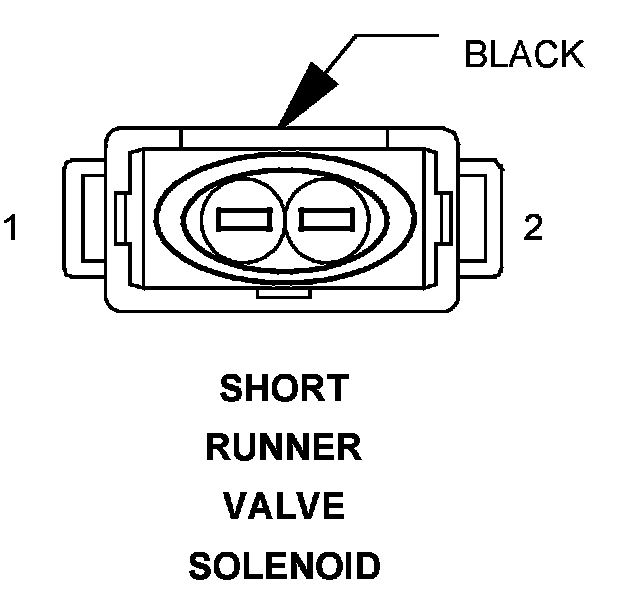

Connector:
Name : SHORT RUNNER VALVE SOLENOID
Color : BLACK
# of pins : 2




Pin Circuit Description
1 20DG/VT SHORT RUNNER VALVE SOLENOID CONTROL
2 20RD/DG FUSED ENGINE CONTROL RELAY OUTPUT
