Installation







INSTALLATION

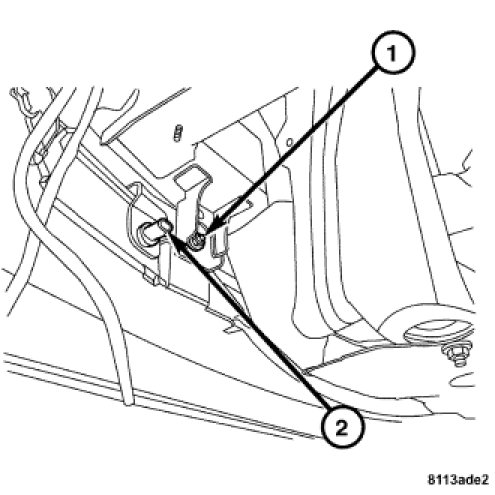

1. Clip the ambient air temperature to the front bumper support.
2. Connect the ambient air temperature harness connector (2).
3. Close the installation flap for left fog lamp located in the left inner fenderwell.
4. Install the engine compartment lower panel.
5. Connect the negative battery cable.
