Installation







INSTALLATION

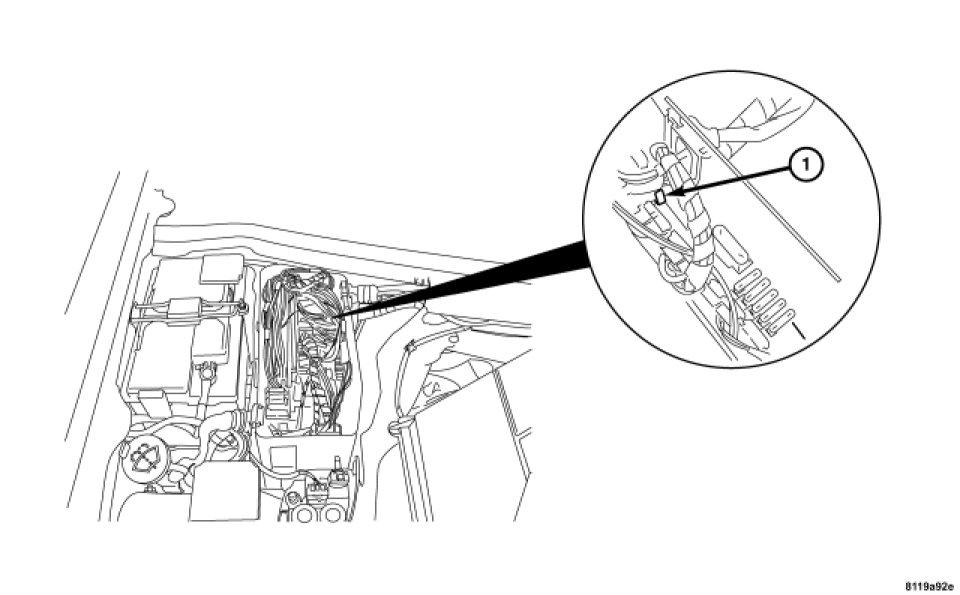

1. Install the relay control module harness connectors to the relay control module (1).
2. Install the relay control module into the control module box, pushing the relay control module down until the clips snap into place.
3. Install the control module box lid.
4. Connect the negative battery cable.
