Accelerator Pedal Position Sensor: Diagrams

Component ID: 4
Component : ACCELERATOR PEDAL POSITION SENSOR

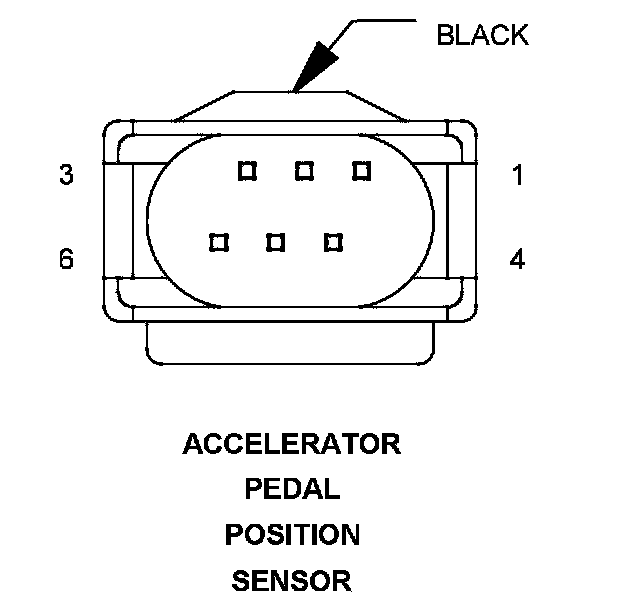

Connector:
Name : ACCELERATOR PEDAL POSITION SENSOR
Color : BLACK
# of pins : 6




Pin Circuit Description
1 20YL/WT ACCELERATOR PEDAL POSITION SENSOR 5 VOLT SUPPLY
2 - -
3 20OR SENSOR GROUND
4 20DG ACCELERATOR PEDAL POSITION SENSOR SIGNAL NO. 2
5 20GY ACCELERATOR PEDAL POSITION SENSOR SIGNAL NO. 1
6 20BK SENSOR GROUND
