Description
DESCRIPTION

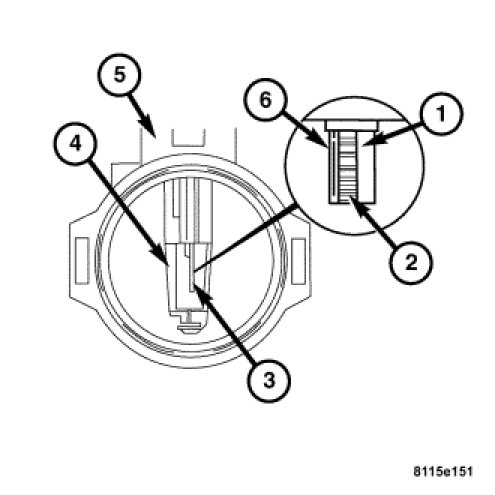

The Mass Air Flow (MAF) Sensor is located on the rear of the engine attached to the throttle body, under the air cleaner housing. The MAF is constructed from plastic and also houses the Intake Air Temperature (IAT) Sensor.
