Air Flow Meter/Sensor: Diagrams

Component ID: 203

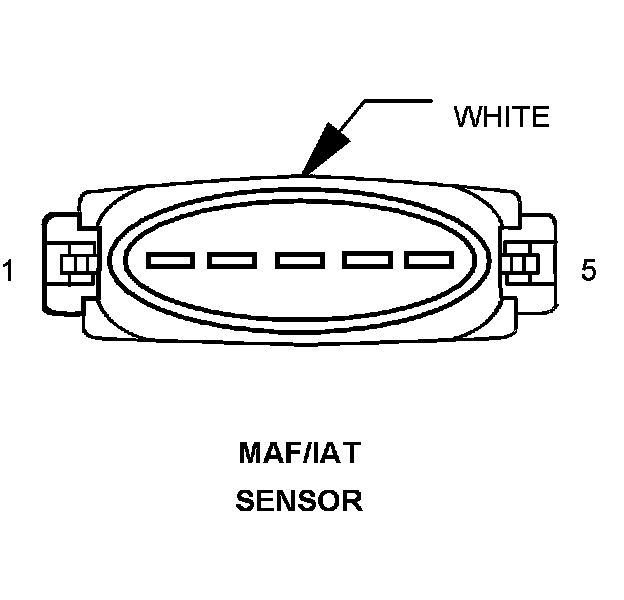

Component : MAF/IAT SENSOR

Connector:
Name : MAF/IAT SENSOR
Color : WHITE
# of pins : 5




Pin Circuit Description
1 20YL/DG IAT SENSOR SIGNAL
2 20RD/BL FUSED ENGINE CONTROL RELAY OUTPUT
3 20BR SENSOR GROUND
4 20BR/YL 5 VOLT SUPPLY
5 20YL/WT MAF SENSOR SIGNAL
