Installation

INSTALLATION





1. Install the MAF onto the intake by securely pushing the MAF onto the throttle body.

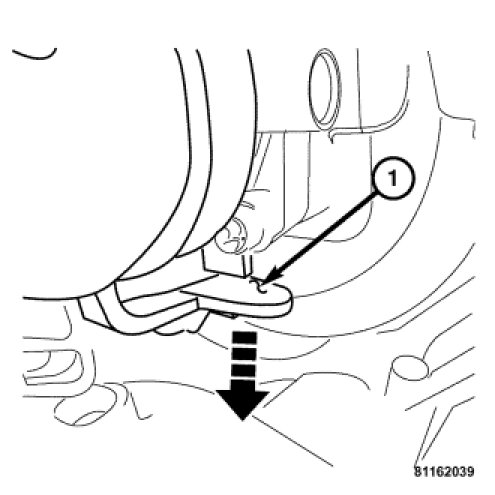

2. Lock the lower locking tab (1) to the intake manifold. Lock the upper locking tab to the intake manifold.

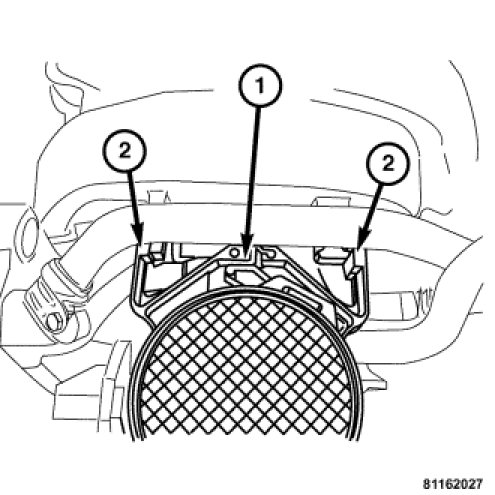

3. Push the MAF so the upper locking ring (1) and tabs (2) are inline with the tabs on the intake, then squeeze the locking ring (1) to lock the MAF onto the intake.

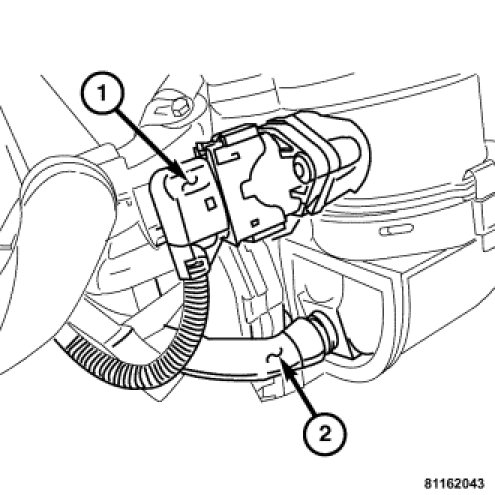

4. Install the vent hose (2) to the MAF sensor.
5. Connect the MAF/IAT harness connector (1).
6. Install the engine cover. Align the engine cover retaining clips to the rubber mounts, and push down firmly to connect engine cover to rubber mounts.

NOTE: To ease the installation of the engine cover, apply a small amount of lubricant to the engine cover rubber mounts.

7. Connect the negative battery cable.
